CY29FCT52T
  • CY29FCT52T
  • CY29FCT52T

CY29FCT52T

ACTIVE

Octal Registered Transceivers with 3-State Outputs

Texas Instruments CY29FCT52T Product Info

1 April 2026 0

Parameters

Supply voltage (min) (V)

4.75

Supply voltage (max) (V)

5.25

Number of channels

8

IOL (max) (mA)

64

IOH (max) (mA)

-32

Input type

TTL-Compatible CMOS

Output type

TTL

Features

Partial power down (Ioff), Ultra high speed (tpd <5ns)

Technology family

FCT

Rating

Catalog

Operating temperature range (°C)

-40 to 85

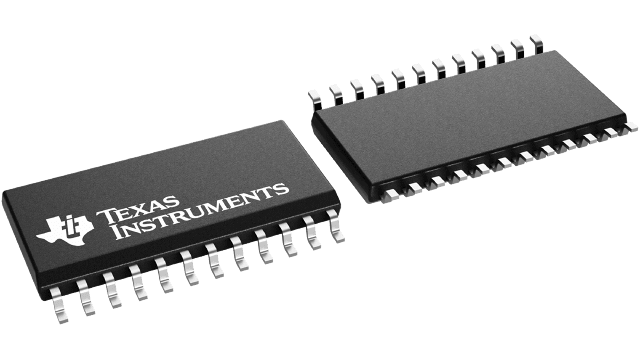

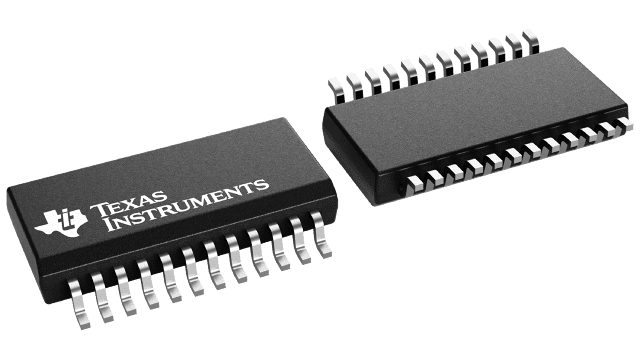

Package

SOIC (DW)-24-159.65 mm² 15.5 x 10.3

Features

  • Function, Pinout, and Drive Compatible With FCT, F Logic, and AM2952
  • Reduced VOH (Typically = 3.3 V) Versions of Equivalent FCT Functions
  • Edge-Rate Control Circuitry for Significantly Improved Noise Characteristics
  • ESD Protection Exceeds JESD 22
    • 2000-V Human-Body Model (A114-A)
    • 200-V Machine Model (A115-A)
    • 1000-V Charged-Device Model (C101)
  • Ioff Supports Partial-Power-Down Mode Operation
  • Matched Rise and Fall Times
  • Fully Compatible With TTL Input and Output Logic Levels
  • 64-mA Output Sink Current
    32-mA Output Source Current

  • Function, Pinout, and Drive Compatible With FCT, F Logic, and AM2952
  • Reduced VOH (Typically = 3.3 V) Versions of Equivalent FCT Functions
  • Edge-Rate Control Circuitry for Significantly Improved Noise Characteristics
  • ESD Protection Exceeds JESD 22
    • 2000-V Human-Body Model (A114-A)
    • 200-V Machine Model (A115-A)
    • 1000-V Charged-Device Model (C101)
  • Ioff Supports Partial-Power-Down Mode Operation
  • Matched Rise and Fall Times
  • Fully Compatible With TTL Input and Output Logic Levels
  • 64-mA Output Sink Current
    32-mA Output Source Current

Description

The CY29FCT52T has two 8-bit back-to-back registers that store data flowing in both directions between two bidirectional buses. Separate clock, clock enable, and 3-state output-enable signals are provided for each register. Both A outputs and B outputs are specified to sink 64 mA.

This device is fully specified for partial-power-down applications using Ioff. The Ioff circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down.

The CY29FCT52T has two 8-bit back-to-back registers that store data flowing in both directions between two bidirectional buses. Separate clock, clock enable, and 3-state output-enable signals are provided for each register. Both A outputs and B outputs are specified to sink 64 mA.

This device is fully specified for partial-power-down applications using Ioff. The Ioff circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down.
