CSD18563Q5A
  • CSD18563Q5A
  • CSD18563Q5A

CSD18563Q5A

ACTIVE

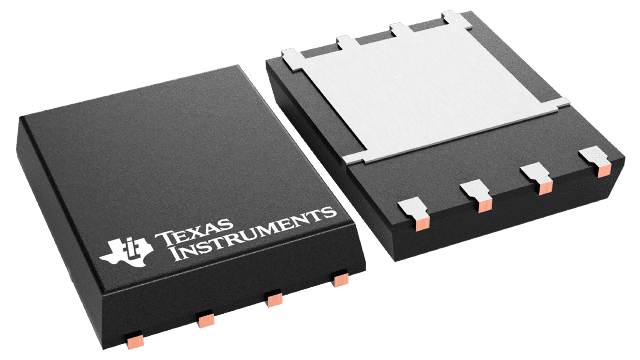

60-V, N channel NexFET™ power MOSFET, single SON 5 mm x 6 mm, 6.8 mOhm

Texas Instruments CSD18563Q5A Product Info

1 April 2026 1

Parameters

VDS (V)

60

VGS (V)

20

Type

N-channel

Configuration

Single

Rds(on) at VGS=10 V (max) (mΩ)

6.8

Rds(on) at VGS=4.5 V (max) (mΩ)

10.8

VGSTH typ (typ) (V)

2

QG (typ) (nC)

15

QGD (typ) (nC)

2.9

QGS (typ) (nC)

3.3

ID - silicon limited at TC=25°C (A)

93

ID - package limited (A)

100

Logic level

Yes

Rating

Catalog

Operating temperature range (°C)

-55 to 150

Package

VSONP (DQJ)-8-29.4 mm² 4.9 x 6

Features

  • Ultra-Low Qg and Qgd
  • Soft Body Diode for Reduced Ringing
  • Low Thermal Resistance
  • Avalanche Rated
  • Logic Level
  • Pb-Free Terminal Plating
  • RoHS Compliant
  • Halogen Free
  • SON 5 mm × 6 mm Plastic Package
  • Ultra-Low Qg and Qgd
  • Soft Body Diode for Reduced Ringing
  • Low Thermal Resistance
  • Avalanche Rated
  • Logic Level
  • Pb-Free Terminal Plating
  • RoHS Compliant
  • Halogen Free
  • SON 5 mm × 6 mm Plastic Package

Description

This 5.7 mΩ, 60 V SON 5 mm × 6 mm NexFET power MOSFET was designed to pair with the CSD18537NQ5A control FET and act as the sync FET for a complete industrial buck converter chipset solution.

This 5.7 mΩ, 60 V SON 5 mm × 6 mm NexFET power MOSFET was designed to pair with the CSD18537NQ5A control FET and act as the sync FET for a complete industrial buck converter chipset solution.
