CSD18542KCS
  • CSD18542KCS
  • CSD18542KCS

CSD18542KCS

ACTIVE

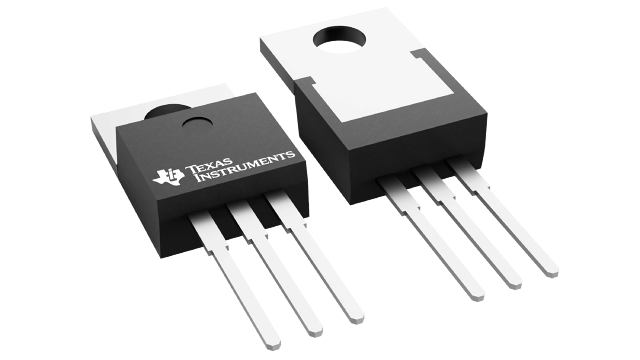

60-V, N channel NexFET™ power MOSFET, single TO-220, 4 mOhm

Texas Instruments CSD18542KCS Product Info

1 April 2026 0

Parameters

VDS (V)

60

VGS (V)

20

Type

N-channel

Configuration

Single

Rds(on) at VGS=10 V (max) (mΩ)

4

Rds(on) at VGS=4.5 V (max) (mΩ)

5.1

VGSTH typ (typ) (V)

1.8

QG (typ) (nC)

44

QGD (typ) (nC)

6.9

QGS (typ) (nC)

10

ID - silicon limited at TC=25°C (A)

170

ID - package limited (A)

200

Logic level

Yes

Rating

Catalog

Operating temperature range (°C)

-55 to 175

Package

TO-220 (KCS)-3-46.228 mm² 10.16 x 4.55

Features

  • Ultra-low Qg and Qgd
  • Low thermal resistance
  • Avalanche rated
  • Logic level
  • Pb free terminal plating
  • RoHS compliant
  • Halogen free
  • TO-220 plastic package
  • Ultra-low Qg and Qgd
  • Low thermal resistance
  • Avalanche rated
  • Logic level
  • Pb free terminal plating
  • RoHS compliant
  • Halogen free
  • TO-220 plastic package

Description

This 60V, 3.3mΩ, TO-220 NexFET™ power MOSFET is designed to minimize losses in power conversion applications.

This 60V, 3.3mΩ, TO-220 NexFET™ power MOSFET is designed to minimize losses in power conversion applications.
