Texas Instruments CSD17311Q5 Product Info

Parameters

VDS (V)	30
VGS (V)	10
Type	N-channel
Configuration	Single
Rds(on) at VGS=4.5 V (max) (mΩ)	2.3
VGSTH typ (typ) (V)	1.2
QG (typ) (nC)	24
QGD (typ) (nC)	5.2
QGS (typ) (nC)	6.3
ID - silicon limited at TC=25°C (A)	100
ID - package limited (A)	100
Logic level	Yes
Rating	Catalog
Operating temperature range (°C)	-55 to 150

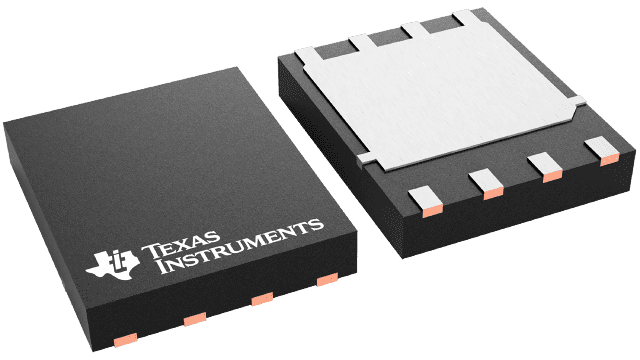

VSON-CLIP (DQH)-8-30 mm² 6 x 5

Optimized for 5V Gate Drive
Ultra Low Q_g and Q_gd
Low Thermal Resistance
Avalanche Rated
Pb Free Terminal Plating
RoHS Compliant
Halogen Free
SON 5-mm × 6-mm Plastic Package
APPLICATIONS
- Notebook Point-of-Load
- Point-of-Load Synchronous Buck in Networking, Telecom and Computing Systems

NexFET is a trademark of Texas Instruments.

Optimized for 5V Gate Drive
Ultra Low Q_g and Q_gd
Low Thermal Resistance
Avalanche Rated
Pb Free Terminal Plating
RoHS Compliant
Halogen Free
SON 5-mm × 6-mm Plastic Package
APPLICATIONS
- Notebook Point-of-Load
- Point-of-Load Synchronous Buck in Networking, Telecom and Computing Systems

NexFET is a trademark of Texas Instruments.

The NexFET™ power MOSFET has been designed to minimize losses in power conversion applications and optimized for 5V gate drive applications.
