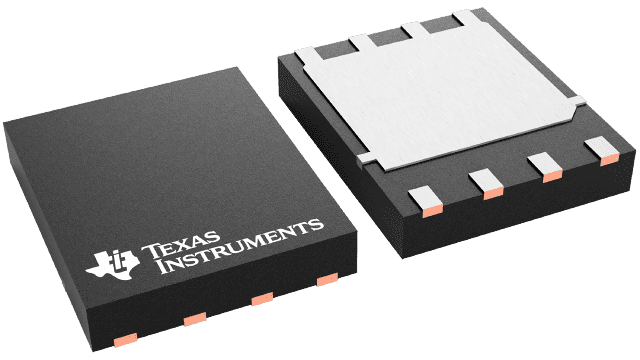

CSD16408Q5
  • CSD16408Q5

CSD16408Q5

ACTIVE

25-V, N channel NexFET™ power MOSFET, single SON 5 mm x 6 mm, 6.8 mOhm

Texas Instruments CSD16408Q5 Product Info

1 April 2026 0

Parameters

VDS (V)

25

VGS (V)

16

Type

N-channel

Configuration

Single

Rds(on) at VGS=10 V (max) (mΩ)

4.5

Rds(on) at VGS=4.5 V (max) (mΩ)

6.8

VGSTH typ (typ) (V)

1.8

QG (typ) (nC)

6.7

QGD (typ) (nC)

1.9

QGS (typ) (nC)

3.1

ID - silicon limited at TC=25°C (A)

113

ID - package limited (A)

100

Logic level

Yes

Rating

Catalog

Operating temperature range (°C)

-55 to 150

Package

VSON-CLIP (DQH)-8-30 mm² 6 x 5

Features

  • Ultralow Q g and Q gd
  • Low Thermal Resistance
  • Avalanche Rated
  • SON 5-mm × 6-mm Plastic Package
  • Ultralow Q g and Q gd
  • Low Thermal Resistance
  • Avalanche Rated
  • SON 5-mm × 6-mm Plastic Package

Description

The NexFET™ power MOSFET has been designed to minimize losses in power conversion applications.

The NexFET™ power MOSFET has been designed to minimize losses in power conversion applications.
