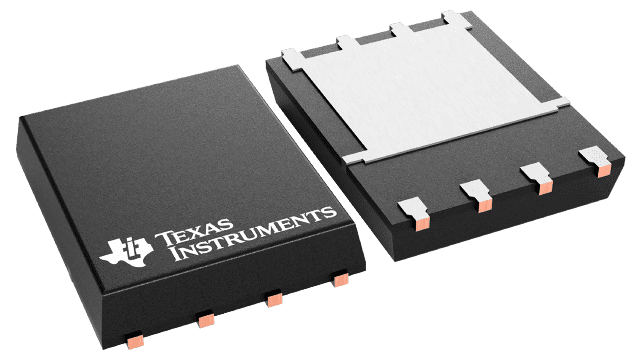

CSD16403Q5A

ACTIVE

Texas Instruments CSD16403Q5A Product Info

1 April 2026 0

VDS (V)	25
VGS (V)	16
Type	N-channel
Configuration	Single
Rds(on) at VGS=10 V (max) (mΩ)	2.8
Rds(on) at VGS=4.5 V (max) (mΩ)	3.7
VGSTH typ (typ) (V)	1.6
QG (typ) (nC)	13.3
QGD (typ) (nC)	3.5
QGS (typ) (nC)	5.5
ID - silicon limited at TC=25°C (A)	100
ID - package limited (A)	100
Logic level	Yes
Rating	Catalog
Operating temperature range (°C)	-55 to 150

VSONP (DQJ)-8-29.4 mm² 4.9 x 6

Ultra Low Q_g and Q_gd
Low Thermal Resistance
Avalanche Rated
Pb Free Terminal Plating
RoHS Compliant
Halogen Free
SON 5mm × 6mm Plastic Package
APPLICATIONS
- Point-of-Load Synchronous Buck Converter for Applications in
  Networking, Telecom and Computing Systems
- Optimized for Control FET Applications

NexFET is a trademark of Texas Instruments.

Ultra Low Q_g and Q_gd
Low Thermal Resistance
Avalanche Rated
Pb Free Terminal Plating
RoHS Compliant
Halogen Free
SON 5mm × 6mm Plastic Package
APPLICATIONS
- Point-of-Load Synchronous Buck Converter for Applications in
  Networking, Telecom and Computing Systems
- Optimized for Control FET Applications

NexFET is a trademark of Texas Instruments.

The NexFET™ power MOSFET has been designed to minimize losses in power conversion applications.
