CDCE6214Q1TM
  • CDCE6214Q1TM
  • CDCE6214Q1TM

CDCE6214Q1TM

ACTIVE

Ultra-low power clock generator supporting PCIe® gen 1-5 with active low output enable

Texas Instruments CDCE6214Q1TM Product Info

1 April 2026 0

Parameters

Number of outputs

4

Output type

HCSL, LVCMOS, LVDS

Output frequency (max) (MHz)

328.125

Core supply voltage (V)

1.8, 2.5, 3.3

Output supply voltage (V)

1.8, 2.5, 3.3

Input type

Differential, LVCMOS, XTAL

Operating temperature range (°C)

-40 to 105

TI functional safety category

Functional Safety-Capable

Features

Integrated EEPROM, Pin programmable, Serial interface

Rating

Automotive

Package

VQFN (RGE)-24-16 mm² 4 x 4

Features

  • AEC-Q100 qualified for automotive applications
    • Temperature grade 2: –40°C to +105°C
  • Functional Safety-Capable
  • Configurable high performance, low-power, frac-N PLL with RMS jitter with spurs (12 kHz – 20 MHz, F out > 100 MHz) as:
    • Integer mode:
      • Differential output: 350 fs typical, 600 fs maximum
      • LVCMOS output: 1.05 ps typical, 1.5 ps maximum
    • Fractional mode:
      • Differential output: 1.7 ps typical, 2.1 ps maximum
      • LVCMOS output: 2.0 ps typical, 4.0 ps maximum
  • Supports PCIe Gen1/2/3/4 with SSC and Gen 1/2/3/4/5 without SSC
  • Internal VCO: 2.335 GHz to 2.625 GHz
  • Typical power consumption: 65 mA for 4-output channel, 23 mA for 1-output channel.
  • Universal clock input, two reference inputs for redundancy
    • Differential AC-coupled or LVCMOS: 10 MHz to 200 MHz
    • Crystal: 10 MHz to 50 MHz
  • Flexible output clock distribution
    • Four channel dividers: Up to five unique output frequencies from 24 kHz to 328.125 MHz
    • Combination of LVDS-like, LP-HCSL or LVCMOS outputs on OUT0 – OUT4 pins
    • Glitchless output divider switching and output channel synchronization
    • Individual output enable through active-low GPIO and register
  • Frequency margining options
    • DCO mode: frequency increment/decrement with 10ppb or less step-size
  • Fully-integrated, configurable loop bandwidth: 100 kHz to 1.6 MHz
  • Single or mixed supply for level translation: 1.8 V, 2.5 V, 3.3 V
  • Configurable GPIOs and flexible configuration options
    • I 2C-compatible interface: up to 400 kHz
    • Integrated EEPROM with two pages and external select pin. In-situ programming allowed.
  • Supports 100-Ω systems
  • Low electromagnetic emissions

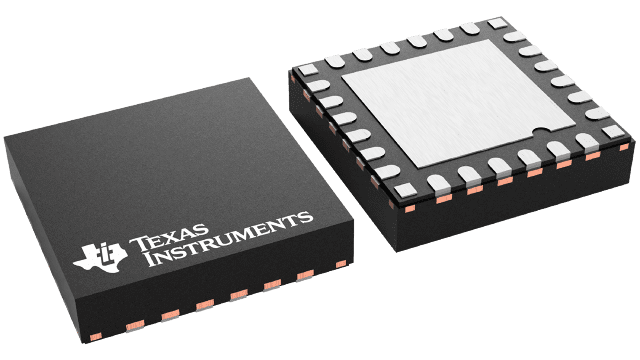

  • Small footprint: 24-pin VQFN (4 mm × 4 mm)
  • AEC-Q100 qualified for automotive applications
    • Temperature grade 2: –40°C to +105°C
  • Functional Safety-Capable
  • Configurable high performance, low-power, frac-N PLL with RMS jitter with spurs (12 kHz – 20 MHz, F out > 100 MHz) as:
    • Integer mode:
      • Differential output: 350 fs typical, 600 fs maximum
      • LVCMOS output: 1.05 ps typical, 1.5 ps maximum
    • Fractional mode:
      • Differential output: 1.7 ps typical, 2.1 ps maximum
      • LVCMOS output: 2.0 ps typical, 4.0 ps maximum
  • Supports PCIe Gen1/2/3/4 with SSC and Gen 1/2/3/4/5 without SSC
  • Internal VCO: 2.335 GHz to 2.625 GHz
  • Typical power consumption: 65 mA for 4-output channel, 23 mA for 1-output channel.
  • Universal clock input, two reference inputs for redundancy
    • Differential AC-coupled or LVCMOS: 10 MHz to 200 MHz
    • Crystal: 10 MHz to 50 MHz
  • Flexible output clock distribution
    • Four channel dividers: Up to five unique output frequencies from 24 kHz to 328.125 MHz
    • Combination of LVDS-like, LP-HCSL or LVCMOS outputs on OUT0 – OUT4 pins
    • Glitchless output divider switching and output channel synchronization
    • Individual output enable through active-low GPIO and register
  • Frequency margining options
    • DCO mode: frequency increment/decrement with 10ppb or less step-size
  • Fully-integrated, configurable loop bandwidth: 100 kHz to 1.6 MHz
  • Single or mixed supply for level translation: 1.8 V, 2.5 V, 3.3 V
  • Configurable GPIOs and flexible configuration options
    • I 2C-compatible interface: up to 400 kHz
    • Integrated EEPROM with two pages and external select pin. In-situ programming allowed.
  • Supports 100-Ω systems
  • Low electromagnetic emissions
  • Small footprint: 24-pin VQFN (4 mm × 4 mm)

Description

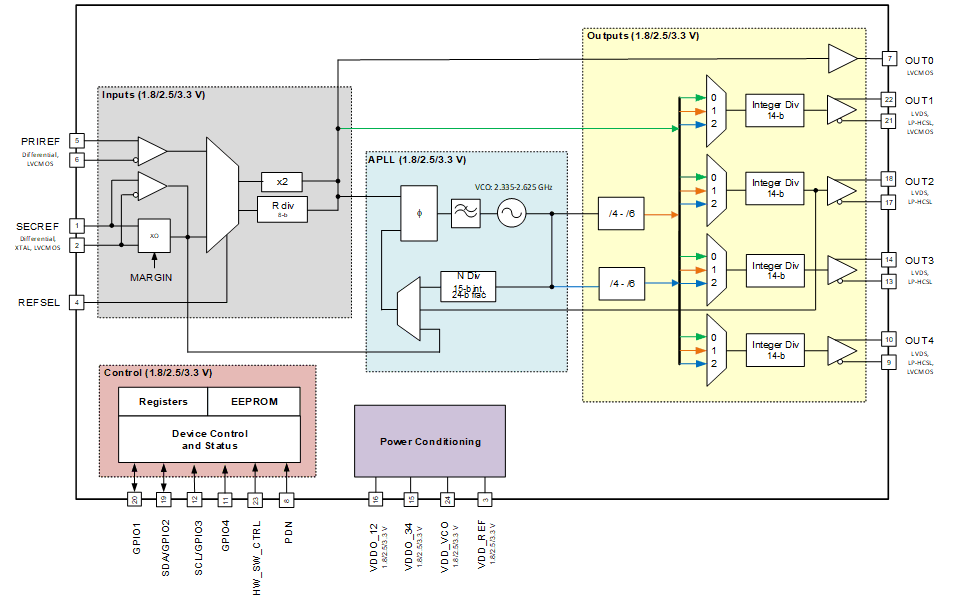

The CDCE6214Q1TM is a 4-channel, ultra-low power, medium grade jitter, clock generator for automotive application that can generate five independent clock outputs selectable between various modes of drivers. The input source can be a single-ended or differential input clock source, or a crystal. The CDCE6214Q1TM features a frac-N PLL to synthesize unrelated base frequency from any input frequency.

The CDCE6214Q1TM is a 4-channel, ultra-low power, medium grade jitter, clock generator for automotive application that can generate five independent clock outputs selectable between various modes of drivers. The input source can be a single-ended or differential input clock source, or a crystal. The CDCE6214Q1TM features a frac-N PLL to synthesize unrelated base frequency from any input frequency.
