ACTIVE
Technology family |
HCT |
Supply voltage (min) (V) |
4.5 |
Supply voltage (max) (V) |
5.5 |
Number of channels |
6 |
IOL (max) (mA) |
6 |
Supply current (max) (µA) |
160 |
IOH (max) (mA) |
-6 |
Input type |
TTL-Compatible CMOS |
Output type |
3-State |
Features |
Balanced outputs, High speed (tpd 10-50ns), Input clamp diode |
Rating |
Catalog |
Operating temperature range (°C) |
-55 to 125 |
PDIP (N)-20-228.702 mm² 24.33 x 9.4

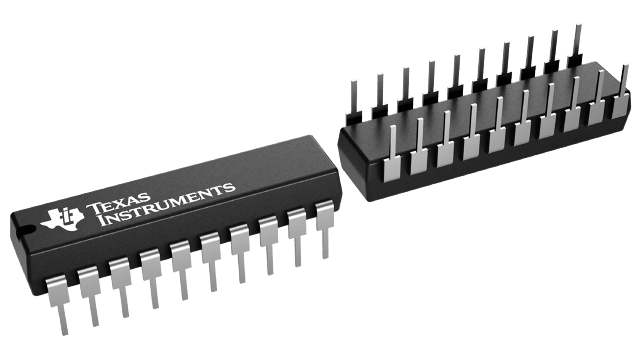

CD74HCT244

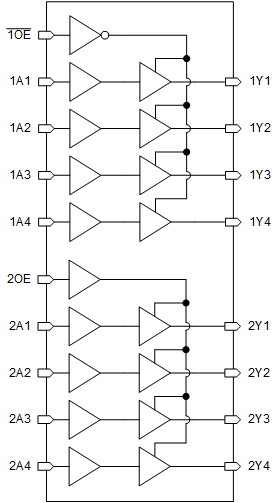

CD74HCT244:6-ch, 4.5-V to 5.5-V buffers with TTL-compatible CMOS inputs and 3-state outputs.Package:PDIP (N)-20-228.702 mm² 24.33 x 9.4
