Texas Instruments TLV320AIC3106 Product Info

Parameters

Number of ADC channels	2
Number of DAC channels	2
Digital audio interface	DSP, I2S, L, R, TDM
Control interface	I2C, SPI
Analog inputs	10
Analog outputs	7
Features	Headset detect, Matrix mixing, Phase-locked loop (PLL), Stereo headphone amplifier
Sampling rate (max) (kHz)	96
Rating	Catalog
ADC SNR (typ) (dB)	92
DAC SNR (typ) (dB)	102
Operating temperature range (°C)	-40 to 85

Package

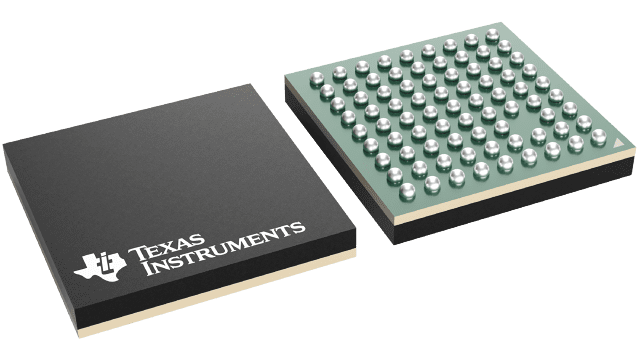

NFBGA (ZXH)-80-25 mm² 5 x 5

Features

Stereo audio DAC:
- 102-dBA signal-to-noise ratio
- 16-, 20-, 24-, 32-bit data
- Supports rates from 8 kHz to 96 kHz
- 3D, bass, treble, EQ, de-emphasis effects
- Flexible power saving modes and performance are available
Stereo audio ADC:
- 92-dBA signal-to-noise ratio
- Supports rates from 8 kHz to 96 kHz
- Digital signal processing and noise filtering available during record
Ten audio input pins:
- Programmable in single-ended or fully differential configurations
- 3-state capability for floating input configurations
Seven audio output drivers:
- Stereo fully differential or single-ended headphone drivers
- Fully differential stereo line outputs
- Fully differential mono output
Low power: 15-mW stereo 48-kHz playback with 3.3-V analog supply
Ultralow-power mode with passive analog bypass
Programmable input/output analog gains
Automatic gain control (AGC) for record
Programmable microphone bias level
Programmable PLL for flexible clock generation
Control bus selectable SPI or I²C
Audio serial data bus supports I²S, left- and right-justified, DSP, and TDM modes
Alternate serial PCM, I²S data bus for easy connection to Bluetooth™ module
Concurrent digital microphone and analog microphone support available
Extensive modular power control
Power supplies:
- Analog: 2.7 V–3.6 V
- Digital Core: 1.65 V–1.95 V
- Digital I/O: 1.1 V–3.6 V

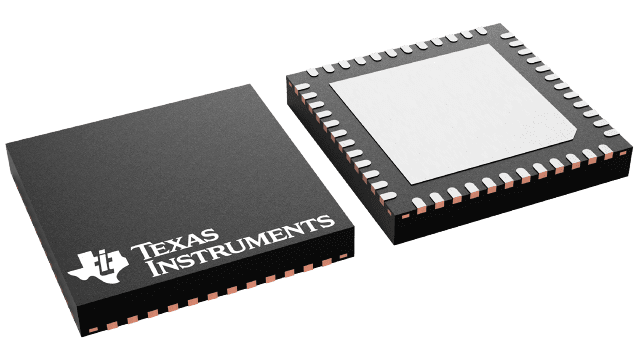

Packages: 5.00 mm × 5.00 mm 80-pin VFBGA;7.00 mm × 7.00 mm 48-pin VQFN

Stereo audio DAC:
- 102-dBA signal-to-noise ratio
- 16-, 20-, 24-, 32-bit data
- Supports rates from 8 kHz to 96 kHz
- 3D, bass, treble, EQ, de-emphasis effects
- Flexible power saving modes and performance are available
Stereo audio ADC:
- 92-dBA signal-to-noise ratio
- Supports rates from 8 kHz to 96 kHz
- Digital signal processing and noise filtering available during record
Ten audio input pins:
- Programmable in single-ended or fully differential configurations
- 3-state capability for floating input configurations
Seven audio output drivers:
- Stereo fully differential or single-ended headphone drivers
- Fully differential stereo line outputs
- Fully differential mono output
Low power: 15-mW stereo 48-kHz playback with 3.3-V analog supply
Ultralow-power mode with passive analog bypass
Programmable input/output analog gains
Automatic gain control (AGC) for record
Programmable microphone bias level
Programmable PLL for flexible clock generation
Control bus selectable SPI or I²C
Audio serial data bus supports I²S, left- and right-justified, DSP, and TDM modes
Alternate serial PCM, I²S data bus for easy connection to Bluetooth™ module
Concurrent digital microphone and analog microphone support available
Extensive modular power control
Power supplies:
- Analog: 2.7 V–3.6 V
- Digital Core: 1.65 V–1.95 V
- Digital I/O: 1.1 V–3.6 V
Packages: 5.00 mm × 5.00 mm 80-pin VFBGA;7.00 mm × 7.00 mm 48-pin VQFN

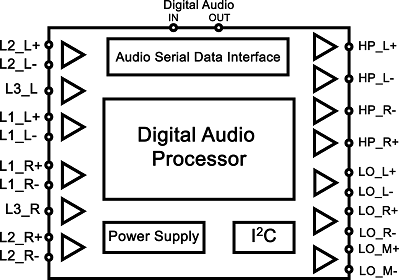

Description

The TLV320AIC3106 is a low-power stereo audio codec with stereo headphone amplifier, as well as multiple inputs and outputs programmable in single-ended or fully differential configurations. Extensive register-based power control is included, enabling stereo 48-kHz DAC playback as low as 15 mW from a 3.3-V analog supply, making it ideal for portable battery-powered audio and telephony applications.

The record path of the TLV320AIC3106 contains integrated microphone bias, digitally controlled stereo microphone preamplifier, and automatic gain control (AGC), with mix/mux capability among the multiple analog inputs. Programmable filters are available during record which can remove audible noise that can occur during optical zooming in digital cameras.

The TLV320AIC3106 is a low-power stereo audio codec with stereo headphone amplifier, as well as multiple inputs and outputs programmable in single-ended or fully differential configurations. Extensive register-based power control is included, enabling stereo 48-kHz DAC playback as low as 15 mW from a 3.3-V analog supply, making it ideal for portable battery-powered audio and telephony applications.

The record path of the TLV320AIC3106 contains integrated microphone bias, digitally controlled stereo microphone preamplifier, and automatic gain control (AGC), with mix/mux capability among the multiple analog inputs. Programmable filters are available during record which can remove audible noise that can occur during optical zooming in digital cameras.
