0
ACTIVE
Number of channels |
8 |
Technology family |
HC |
Supply voltage (min) (V) |
2 |
Supply voltage (max) (V) |
6 |
Input type |
Standard CMOS |
Output type |
3-State |
Clock frequency (max) (MHz) |
28 |
IOL (max) (mA) |
7.8 |
IOH (max) (mA) |
-7.8 |
Supply current (max) (µA) |
80 |
Features |
Balanced outputs, Flow-through pinout, High speed (tpd 10-50ns), Positive input clamp diode |
Operating temperature range (°C) |
-55 to 125 |
Rating |
Catalog |

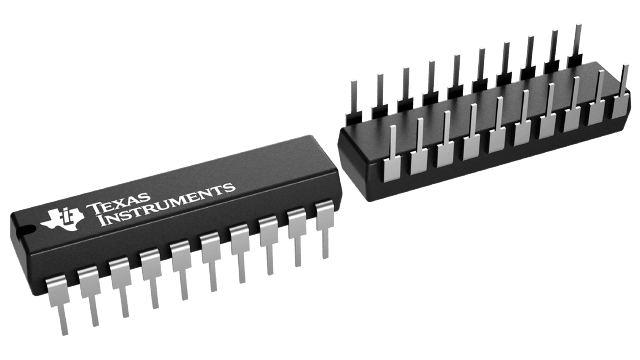

PDIP (N)-20-228.702 mm² 24.33 x 9.4
CD74HC573

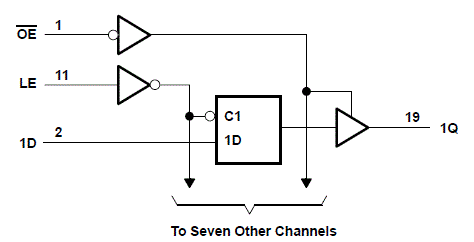

CD74HC573:High Speed CMOS Logic Octal Transparent Latches with 3-State Outputs.Package:PDIP (N)-20-228.702 mm² 24.33 x 9.4
