0
ACTIVE
Number of channels |
2 |
Technology family |
HC |
Supply voltage (min) (V) |
2 |
Supply voltage (max) (V) |
6 |
Input type |
LVTTL/CMOS |
Output type |
Push-Pull |
Clock frequency (MHz) |
24 |
Supply current (max) (µA) |
40 |
IOL (max) (mA) |
6 |
IOH (max) (mA) |
-6 |
Features |
Balanced outputs, Clear, High speed (tpd 10-50ns), Negative edge triggered, Positive input clamp diode, Preset |
Operating temperature range (°C) |
-55 to 125 |
Rating |
Catalog |

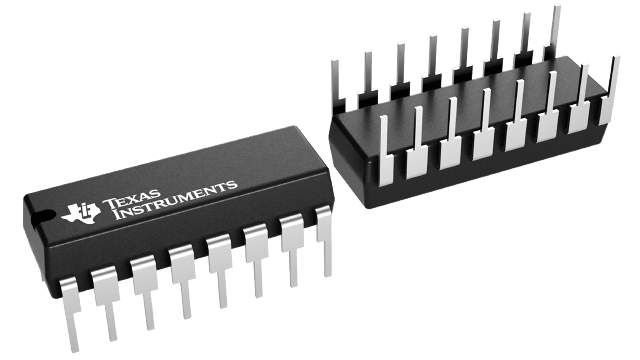

PDIP (N)-16-181.42 mm² 19.3 x 9.4
CD74HC112
CD74HC112:High Speed CMOS Logic Dual Negative-Edge-Triggered J-K Flip-Flops with Set and Reset.Package:PDIP (N)-16-181.42 mm² 19.3 x 9.4
