CD74AC08

ACTIVE

4-ch, 2-input, 1.5-V to 5.5-V high-speed (7 ns) 24-mA drive strength AND gate

Texas Instruments CD74AC08 Product Info

1 April 2026 1

Parameters

Technology family

AC

Supply voltage (min) (V)

1.5

Supply voltage (max) (V)

5.5

Number of channels

4

Inputs per channel

2

IOL (max) (mA)

24

IOH (max) (mA)

-24

Input type

Standard CMOS

Output type

Push-Pull

Features

Very high speed (tpd 5-10ns)

Data rate (max) (Mbps)

100

Rating

Catalog

Operating temperature range (°C)

-55 to 125

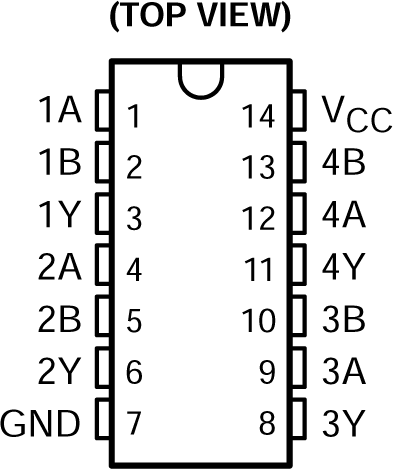

Package

PDIP (N)-14-181.42 mm² 19.3 x 9.4

Features

  • AC types feature 1.5V to 5.5V operation and balanced noise immunity at 30% of the supply voltage
  • Speed of bipolar F, AS, and S, with significantly reduced power consumption
  • Balanced propagation delays
  • Buffered inputs

  • ±24mA output drive current

    - Fanout to 15 F devices

  • SCR-latchup-resistant CMOS process and circuit design
  • Exceeds 2kV ESD protection per MIL-STD-883, method 3015
  • AC types feature 1.5V to 5.5V operation and balanced noise immunity at 30% of the supply voltage
  • Speed of bipolar F, AS, and S, with significantly reduced power consumption
  • Balanced propagation delays
  • Buffered inputs

  • ±24mA output drive current

    - Fanout to 15 F devices

  • SCR-latchup-resistant CMOS process and circuit design
  • Exceeds 2kV ESD protection per MIL-STD-883, method 3015

Description

CD74AC08:4-ch, 2-input, 1.5-V to 5.5-V high-speed (7 ns) 24-mA drive strength AND gate.Package:PDIP (N)-14-181.42 mm² 19.3 x 9.4
