ACTIVE
Number of channels |
6 |
Technology family |
ACT |
Supply voltage (min) (V) |
4.5 |
Supply voltage (max) (V) |
5.5 |
Input type |
TTL-Compatible CMOS |
Output type |
Push-Pull |
Clock frequency (max) (MHz) |
150 |
IOL (max) (mA) |
24 |
IOH (max) (mA) |
-24 |
Supply current (max) (µA) |
20 |
Features |
Balanced outputs, Positive input clamp diode, Very high speed (tpd 5-10ns) |
Operating temperature range (°C) |
-40 to 125 |
Rating |
Automotive |

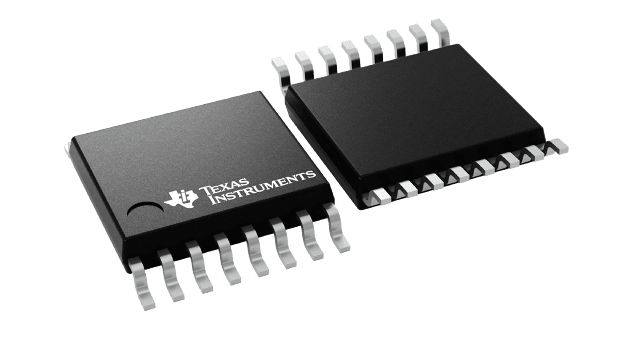

TSSOP (PW)-16-32 mm² 5 x 6.4
The SN74ACT164-Q1 device contains six D-type flip-flops with shared active-low clear (CLR) and rising-edge triggered clock (CLK) inputs.
