ADS54J54
  • ADS54J54
  • ADS54J54

ADS54J54

ACTIVE

Quad-Channel, 14-Bit, 500-MSPS Analog-to-Digital Converter (ADC)

Texas Instruments ADS54J54 Product Info

1 April 2026 0

Parameters

Sample rate (max) (Msps)

500

Resolution (Bits)

14

Number of input channels

4

Interface type

JESD204B

Analog input BW (MHz)

900

Features

High Performance

Rating

Catalog

Peak-to-peak input voltage range (V)

1.25

Power consumption (typ) (mW)

3500

Architecture

Pipeline

SNR (dB)

68.3

ENOB (Bits)

11

SFDR (dB)

95

Operating temperature range (°C)

-40 to 85

Input buffer

Yes

Package

VQFN (RGC)-64-81 mm² 9 x 9

Features

  • 4 Channel, 14-Bit 500 MSPS ADC
  • Analog input buffer with high impedance input
  • Flexible input clock buffer with divide by 1/2/4
  • 1.25 VPP Differential full-scale input
  • JESD204B Serial interface
    • Subclass 1 compliant up to 5 Gbps
    • 1 Lane Per ADC up to 250 Msps
    • 2 Lanes Per ADC up to 500 Msps

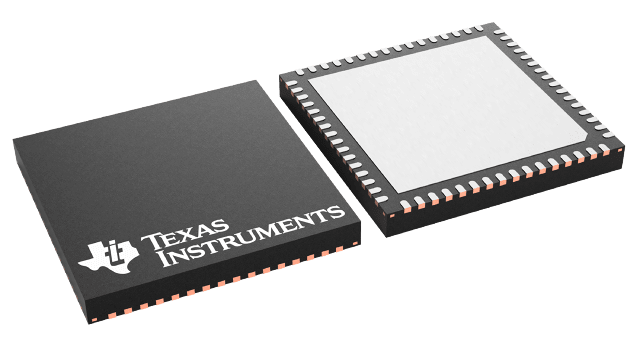

  • 64-Pin QFN Package (9 mm x 9 mm)
  • Key specifications:
    • Power dissipation: 875 mW/ch
    • Input bandwidth (3 dB): 900 MHz
    • Aperture jitter: 98 fs rms
    • Channel isolation: 85 dB
    • Performance at ƒin = 170 MHz at 1.25 VPP,
      1lane 2x Decimation –1 dBFS
      • SNR: 67.2 dBFS
      • SFDR: 85 dBc HD2,3; 95 dBFS non-HD2,3
    • Performance at ƒin = 370 MHz at 1.25 VPP,
      2lane no Decimation –1 dBFS
      • SNR: 64.7 dBFS
      • SFDR: 75 dBc HD2,3; 83 dBFS non-HD2,3
  • 4 Channel, 14-Bit 500 MSPS ADC
  • Analog input buffer with high impedance input
  • Flexible input clock buffer with divide by 1/2/4
  • 1.25 VPP Differential full-scale input
  • JESD204B Serial interface
    • Subclass 1 compliant up to 5 Gbps
    • 1 Lane Per ADC up to 250 Msps
    • 2 Lanes Per ADC up to 500 Msps
  • 64-Pin QFN Package (9 mm x 9 mm)
  • Key specifications:
    • Power dissipation: 875 mW/ch
    • Input bandwidth (3 dB): 900 MHz
    • Aperture jitter: 98 fs rms
    • Channel isolation: 85 dB
    • Performance at ƒin = 170 MHz at 1.25 VPP,
      1lane 2x Decimation –1 dBFS
      • SNR: 67.2 dBFS
      • SFDR: 85 dBc HD2,3; 95 dBFS non-HD2,3
    • Performance at ƒin = 370 MHz at 1.25 VPP,
      2lane no Decimation –1 dBFS
      • SNR: 64.7 dBFS
      • SFDR: 75 dBc HD2,3; 83 dBFS non-HD2,3

Description

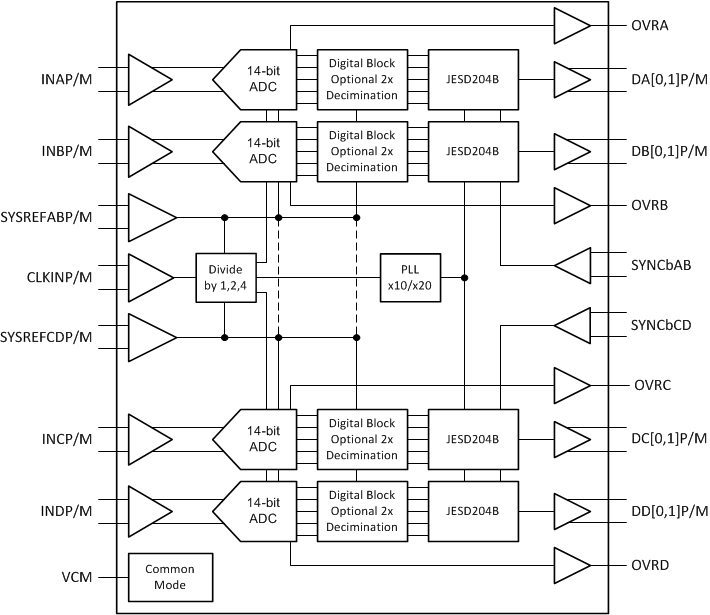

The ADS54J54 is a low power, wide bandwidth 14-bit 500 MSPS quad channel analog-to-digital converter (ADC). It supports the JESD204B serial interface with data rates up to 5 Gbps supporting 1 or 2 lanes per ADC. The buffered analog input provides uniform input impedance across a wide frequency range while minimizing sample-and-hold glitch energy. A sampling clock divider allows more flexibility for system clock architecture design. The ADS54J54 provides excellent spurious-free dynamic range (SFDR) over a large input frequency range with very low power consumption. Optional 2x Decimation Filter provides high-pass or low-pass filter modes.

The ADS54J54 is a low power, wide bandwidth 14-bit 500 MSPS quad channel analog-to-digital converter (ADC). It supports the JESD204B serial interface with data rates up to 5 Gbps supporting 1 or 2 lanes per ADC. The buffered analog input provides uniform input impedance across a wide frequency range while minimizing sample-and-hold glitch energy. A sampling clock divider allows more flexibility for system clock architecture design. The ADS54J54 provides excellent spurious-free dynamic range (SFDR) over a large input frequency range with very low power consumption. Optional 2x Decimation Filter provides high-pass or low-pass filter modes.
