ACTIVE
Resolution (Bits) |
12 |
Sample rate (max) (ksps) |
1000 |
Number of input channels |
2 |
Interface type |
SPI |
Architecture |
SAR |
Input type |
Single-ended |
Multichannel configuration |
Multiplexed |
Rating |
Catalog |
Reference mode |
External |
Input voltage range (max) (V) |
5.5 |
Input voltage range (min) (V) |
0 |
Features |
Daisy-Chainable, Oscillator |
Operating temperature range (°C) |
-40 to 85 |
Power consumption (typ) (mW) |
13.7 |
Analog supply voltage (min) (V) |
2.7 |
Analog supply voltage (max) (V) |
5.5 |
SNR (dB) |
73.9 |
Digital supply (min) (V) |
1.65 |
Digital supply (max) (V) |
5.5 |
TSSOP (PW)-16-32 mm² 5 x 6.4
SPI is a trademark of Motorola, Inc.
All other trademarks are the property of their respective owners

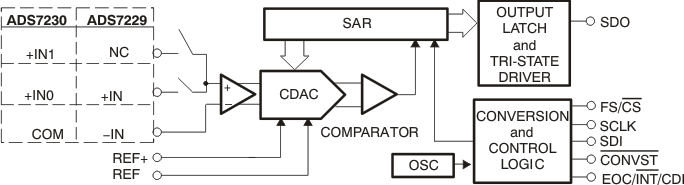

The ADS7229 is a low-power, 12-bit, 1MSPS analog-to-digital converter (ADC) with a unipolar input. The device includes a 12-bit capacitor-based successive approximation register (SAR) ADC with inherent sample-and-hold.
The ADS7230 is based on the same core and includes a 2-to-1 input MUX with a programmable TAG bit output option. Both the ADS7229 and ADS7230 offer a high-speed, wide voltage serial interface and are capable of daisy-chain mode operation when multiple converters are used.

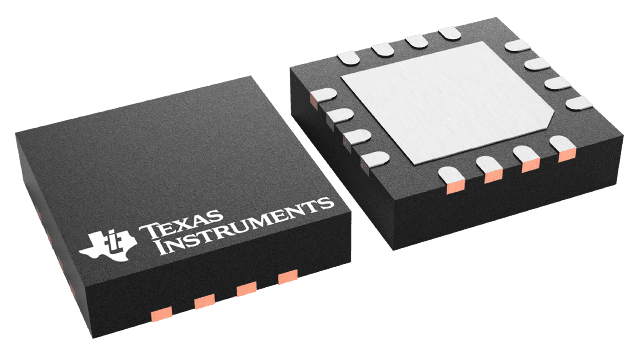

These devices are available in 4 × 4 QFN and TSSOP-16 packages, and are fully specified for operation over the industrial -40°C to +85°C temperature range.
