ADS5474-SP
  • ADS5474-SP
  • ADS5474-SP

ADS5474-SP

ACTIVE

Radiation-hardness-assured (RHA), QMLV, 100-krad, ceramic, 14-bit, single, 400-MSPS ADC

Texas Instruments ADS5474-SP Product Info

1 April 2026 0

Parameters

Sample rate (max) (Msps)

400

Resolution (Bits)

14

Number of input channels

1

Interface type

Parallel LVDS

Analog input BW (MHz)

1440

Features

High Performance

Rating

Space

Peak-to-peak input voltage range (V)

2.2

Power consumption (typ) (mW)

2500

Architecture

Pipeline

SNR (dB)

70.5

ENOB (Bits)

10.9

SFDR (dB)

78

Operating temperature range (°C)

-55 to 125

Input buffer

Yes

Radiation, TID (typ) (krad)

100

Radiation, SEL (MeV·cm2/mg)

86

Package

CFP (HFG)-84-362.9025 mm² 19.05 x 19.05

Features

  • Sample rate: 400MSPS
  • 14-Bit resolution, 10.9 bits effective number of bits (ENOB)
  • 5962R13208:
    • Radiation hardness assurance (RHA): up to TID 100krad (Si)
    • Total ionizing dose: 100krad (Si)
    • ELDRS free: 100krad (Si)
    • SEL/SEU Characterized
  • Input bandwidth: 1.28GHz
  • SFDR = 78dBc at 230MHz and 400MSPS
  • SNR = 69.8dBFS at 230MHz and 400MSPS
  • Differential input voltage: 2.2VPP
  • LVDS-Compatible outputs
  • Total power dissipation: 2.5W
  • Power down mode: 50mW
  • Offset binary output format
  • Output data transitions on the rising and falling edges of a half-rate output clock
  • On-chip analog buffer, track-and-hold, and reference circuit

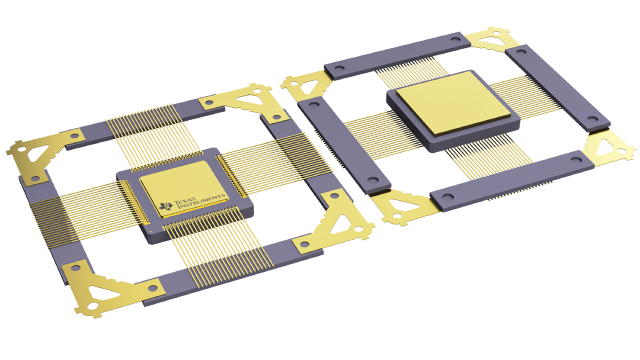

  • Available in an 84-pin ceramic non-conductive tie-bar package (HFG)
  • Military temperature range: –55°C to 125°C Tcase
  • Engineering evaluation (/EM) samples are available (1)
  • Pin-similar and compatible with 12- and 14-bit family: ADS5463-SP and ADS5444-SP

(1)These units are intended for engineering evaluation only. They are processed to a non-compliant flow (e.g. No Burn-In, etc.) and are tested to a temperature rating of 25°C only. These units are not suitable for qualification, production, radiation testing or flight use. Parts are not warranted for performance over the full MIL specified temperature range of –55°C to 125°C or operating life.

  • Sample rate: 400MSPS
  • 14-Bit resolution, 10.9 bits effective number of bits (ENOB)
  • 5962R13208:
    • Radiation hardness assurance (RHA): up to TID 100krad (Si)
    • Total ionizing dose: 100krad (Si)
    • ELDRS free: 100krad (Si)
    • SEL/SEU Characterized
  • Input bandwidth: 1.28GHz
  • SFDR = 78dBc at 230MHz and 400MSPS
  • SNR = 69.8dBFS at 230MHz and 400MSPS
  • Differential input voltage: 2.2VPP
  • LVDS-Compatible outputs
  • Total power dissipation: 2.5W
  • Power down mode: 50mW
  • Offset binary output format
  • Output data transitions on the rising and falling edges of a half-rate output clock
  • On-chip analog buffer, track-and-hold, and reference circuit
  • Available in an 84-pin ceramic non-conductive tie-bar package (HFG)
  • Military temperature range: –55°C to 125°C Tcase
  • Engineering evaluation (/EM) samples are available (1)
  • Pin-similar and compatible with 12- and 14-bit family: ADS5463-SP and ADS5444-SP

(1)These units are intended for engineering evaluation only. They are processed to a non-compliant flow (e.g. No Burn-In, etc.) and are tested to a temperature rating of 25°C only. These units are not suitable for qualification, production, radiation testing or flight use. Parts are not warranted for performance over the full MIL specified temperature range of –55°C to 125°C or operating life.

Description

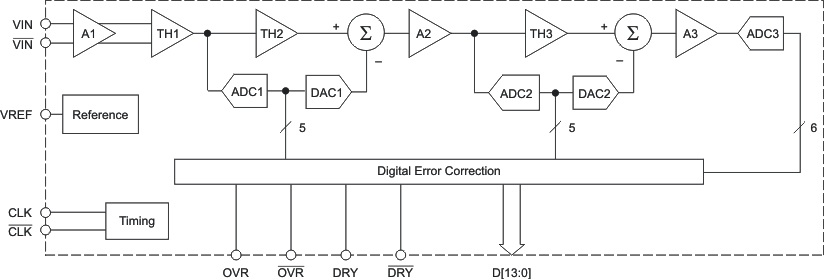

The ADS5474 is a 14-bit, 400MSPS analog-to-digital converter (ADC) that operates from both a 5V supply and 3.3V supply while providing LVDS-compatible digital outputs. This ADC is one of a family of 12-, 13-, 14-bit ADCs that operate from 210MSPS to 500MSPS. The ADS5474 input buffer isolates the internal switching of the onboard track and hold (T&H) from disturbing the signal source while providing a high-impedance input. An internal reference generator is also provided to simplify the system design.

Designed with a 1.4GHz input bandwidth for the conversion of wide-bandwidth signals that exceed 400MHz of input frequency at 400MSPS, the ADS5474 has outstanding low noise performance and spurious-free dynamic range over a large input frequency range.

The ADS5474 is available in an 84-pin ceramic non-conductive tie-bar package (HFG). The device is built on Texas Instruments complementary bipolar process (BiCom3) and is specified over the full military temperature range (–55°C to 125°C Tcase).

The ADS5474 is a 14-bit, 400MSPS analog-to-digital converter (ADC) that operates from both a 5V supply and 3.3V supply while providing LVDS-compatible digital outputs. This ADC is one of a family of 12-, 13-, 14-bit ADCs that operate from 210MSPS to 500MSPS. The ADS5474 input buffer isolates the internal switching of the onboard track and hold (T&H) from disturbing the signal source while providing a high-impedance input. An internal reference generator is also provided to simplify the system design.

Designed with a 1.4GHz input bandwidth for the conversion of wide-bandwidth signals that exceed 400MHz of input frequency at 400MSPS, the ADS5474 has outstanding low noise performance and spurious-free dynamic range over a large input frequency range.

The ADS5474 is available in an 84-pin ceramic non-conductive tie-bar package (HFG). The device is built on Texas Instruments complementary bipolar process (BiCom3) and is specified over the full military temperature range (–55°C to 125°C Tcase).
