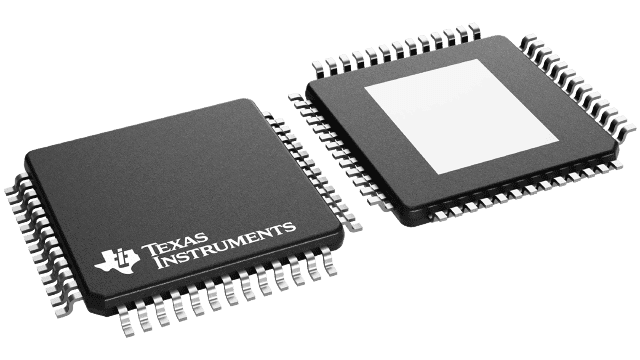

ADS5423
  • ADS5423

ADS5423

ACTIVE

14-Bit, 80-MSPS Analog-to-Digital Converter (ADC)

Texas Instruments ADS5423 Product Info

1 April 2026 0

Parameters

Sample rate (max) (Msps)

80

Resolution (Bits)

14

Number of input channels

1

Interface type

Parallel CMOS

Analog input BW (MHz)

570

Features

High Performance

Rating

Catalog

Peak-to-peak input voltage range (V)

2.2

Power consumption (typ) (mW)

1850

Architecture

Pipeline

SNR (dB)

74.6

ENOB (Bits)

12.2

SFDR (dB)

94

Operating temperature range (°C)

-40 to 85

Input buffer

No

Package

HTQFP (PGP)-52-144 mm² 12 x 12

Features

  • 14 Bit Resolution
  • 80 MSPS Maximum Sample Rate
  • SNR = 74 dBc at 80 MSPS and 50 MHz IF
  • SFDR = 94 dBc at 80 MSPS and 50 MHz IF
  • 2.2 Vpp Differential Input Range
  • 5 V Supply Operation
  • 3.3 V CMOS Compatible Outputs
  • 1.85 W Total Power Dissipation
  • 2s Complement Output Format
  • On-Chip Input Analog Buffer, Track and Hold, and Reference Circuit
  • 52 Pin HTQFP Package With Exposed Heatsink
  • Pin Compatible to the AD6644/45
  • Industrial Temperature Range = -40°C to 85°C
  • APPLICATIONS
    • Single and Multichannel Digital Receivers
    • Base Station Infrastructure
    • Instrumentation
    • Video and Imaging
  • RELATED DEVICES
    • Clocking: CDC7005
    • Amplifiers: OPA695, THS4509

PowerPad is a trademark of Texas Instruments.
All other trademarks are the property of their respective owners.

  • 14 Bit Resolution
  • 80 MSPS Maximum Sample Rate
  • SNR = 74 dBc at 80 MSPS and 50 MHz IF
  • SFDR = 94 dBc at 80 MSPS and 50 MHz IF
  • 2.2 Vpp Differential Input Range
  • 5 V Supply Operation
  • 3.3 V CMOS Compatible Outputs
  • 1.85 W Total Power Dissipation
  • 2s Complement Output Format
  • On-Chip Input Analog Buffer, Track and Hold, and Reference Circuit
  • 52 Pin HTQFP Package With Exposed Heatsink
  • Pin Compatible to the AD6644/45
  • Industrial Temperature Range = -40°C to 85°C
  • APPLICATIONS
    • Single and Multichannel Digital Receivers
    • Base Station Infrastructure
    • Instrumentation
    • Video and Imaging
  • RELATED DEVICES
    • Clocking: CDC7005
    • Amplifiers: OPA695, THS4509

PowerPad is a trademark of Texas Instruments.
All other trademarks are the property of their respective owners.

Description

The ADS5423 is a 14 bit 80 MSPS analog-to-digital converter (ADC) that operates from a 5 V supply, while providing 3.3 V CMOS compatible digital outputs. The ADS5423 input buffer isolates the internal switching of the on-chip Track and Hold (T&H) from disturbing the signal source. An internal reference generator is also provided to further simplify the system design. The ADS5423 has outstanding low noise and linearity, over input frequency. With only a
2.2 VPP input range, simplifies the design of multicarrier applications, where the carriers are selected on the digital domain.

The ADS5423 is available in a 52 pin HTQFP with heatsink package and is pin compatible to the AD6645. The ADS5423 is built on state of the art Texas Instruments complementary bipolar process (BiCom3) and is specified over full industrial temperature range (-40°C to 85°C).

The ADS5423 is a 14 bit 80 MSPS analog-to-digital converter (ADC) that operates from a 5 V supply, while providing 3.3 V CMOS compatible digital outputs. The ADS5423 input buffer isolates the internal switching of the on-chip Track and Hold (T&H) from disturbing the signal source. An internal reference generator is also provided to further simplify the system design. The ADS5423 has outstanding low noise and linearity, over input frequency. With only a
2.2 VPP input range, simplifies the design of multicarrier applications, where the carriers are selected on the digital domain.

The ADS5423 is available in a 52 pin HTQFP with heatsink package and is pin compatible to the AD6645. The ADS5423 is built on state of the art Texas Instruments complementary bipolar process (BiCom3) and is specified over full industrial temperature range (-40°C to 85°C).
