0
ACTIVE
Number of channels |
2 |
Output type |
Push-Pull |
Propagation delay time (µs) |
0.0045 |
Vs (max) (V) |
5.5 |
Vs (min) (V) |
2.7 |
Rating |
Catalog |
Features |
Hysteresis |
Iq per channel (typ) (mA) |
3.2 |
Vos (offset voltage at 25°C) (max) (mV) |
6.5 |
Rail-to-rail |
In |
Operating temperature range (°C) |
-40 to 125 |
Input bias current (±) (max) (nA) |
0.01 |
VICR (max) (V) |
5.7 |
VICR (min) (V) |
-0.2 |
SOIC (D)-8-29.4 mm² 4.9 x 6
The TLV350x family of push-pull output comparators feature a fast 4.5-ns propagation delay and operation from 2.7 V to 5.5 V. Beyond-the-rails input common-mode range makes it an ideal choice for low-voltage applications. The rail-to-rail output directly drives either CMOS or TTL logic.

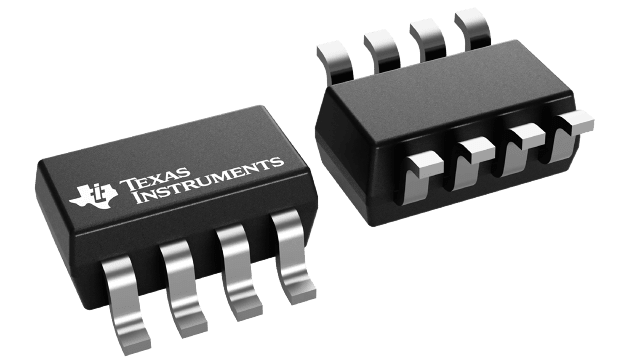

Microsize packages provide options for portable and space-restricted applications. The single (TLV3501) is available in 6-pin SOT-23 and 8-pin SO packages. The dual (TLV3502) comes in the 8-pin SOT-23 and 8-pin SO packages.
