ACTIVE
Sample rate (max) (Msps) |
25 |
Resolution (Bits) |
10 |
Number of input channels |
2 |
Interface type |
Parallel CMOS, Serial CMOS |
Analog input BW (MHz) |
150 |
Features |
Decimating Filter, Differential Inputs, Input buffer, Low power, Out of Range Indicator, Power Down |
Rating |
Catalog |
Peak-to-peak input voltage range (V) |
1.9 |
Power consumption (typ) (mW) |
59 |
Architecture |
SAR |
SNR (dB) |
61.1 |
ENOB (Bits) |
9.9 |
SFDR (dB) |
66 |
Operating temperature range (°C) |
-40 to 105 |
Input buffer |
Yes |

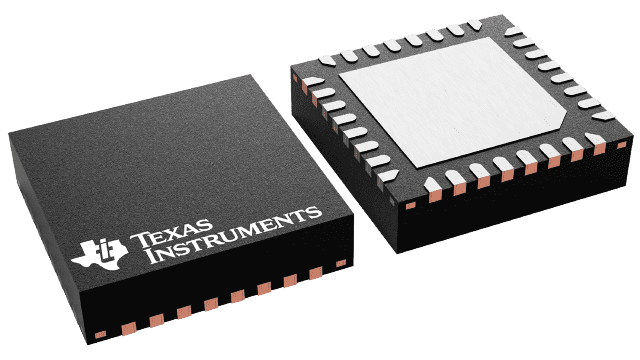

VQFN (RSM)-32-16 mm² 4 x 4
The ADC3910Dx and ADC3910Sx are a family ultra-low power 10-bit 125MSPS high-speed single and dual channel analog-to-digital converters. High-speed control loops benefit from the short latency of only 1 clock cycle. The ADC consumes only 92mW at 125Msps with a power consumption that scales with lower sampling rates.
The device uses DDR, HDDR, SDR or serial CMOS interface to output the data from +1.8V to +3.3V to accommodate various receiver requirements. The device implements analog monitoring function by event triggered interrupts per channel using a digital comparator with programmable high and low thresholds, hysteresis, and event counter. The device is a pin-to-pin compatible family of ADCs with 8 and 10-bit resolution and different speed grades. The device is available in a 32-pin VQFN package, and supports industrial temperature range from -40 to +105°C.
