0
ACTIVE
Number of channels |
2 |
Vrwm (V) |
12 |
Bi-/uni-directional |
Uni-Directional |
Package name |
SOT-23-3 |
IO capacitance (typ) (pF) |
105 |
IEC 61000-4-2 contact (±V) |
30000 |
Clamping voltage (V) |
20 |
Interface type |
CAN, GPIO, LIN |
Breakdown voltage (min) (V) |
14.3 |
IO leakage current (max) (nA) |
50 |
Rating |
Automotive |
Operating temperature range (°C) |
-55 to 150 |

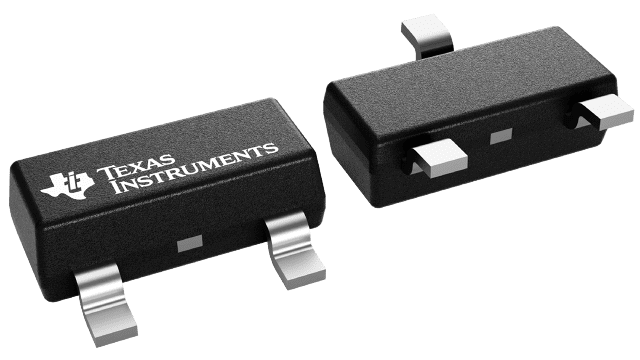

SOT-23 (DBZ)-3-6.9204 mm² 2.92 x 2.37
The MMBZxxVAL-Q1 is a dual channel unidirectional or single channel bidirectional ESD in common anode configuration. The devices relatively low capacitance and low leakage features enable use in higher speed applications.
The MMBZxxVAL-Q1 is packaged in the SOT-23, providing two channels of robust transient protection in one space-efficient form factor.
