ADC168M102R-SEP
  • ADC168M102R-SEP
  • ADC168M102R-SEP

ADC168M102R-SEP

ACTIVE

Radiation-tolerant, 8-channel, 1MSPS, 16-bit, simultaneous-sampling SAR ADC

Texas Instruments ADC168M102R-SEP Product Info

1 April 2026 4

Parameters

Resolution (Bits)

16

Sample rate (max) (ksps)

1000

Number of input channels

8

Interface type

SPI

Architecture

SAR

Input type

Differential, Pseudo-Differential

Multichannel configuration

Multiplexed, Simultaneous Sampling

Rating

Space

Reference mode

External, Internal

Input voltage range (max) (V)

5.5

Input voltage range (min) (V)

0

Operating temperature range (°C)

-55 to 125

Power consumption (typ) (mW)

47.2

Analog supply voltage (min) (V)

2.7

Analog supply voltage (max) (V)

5.5

SNR (dB)

93

Digital supply (min) (V)

2.3

Digital supply (max) (V)

5.5

Package

VQFN (RHB)-32-25 mm² 5 x 5

Features

  • Radiation tolerant:
    • Single-event latch-up (SEL) immune up to LET = 43MeV-cm2/mg at 125°C
    • Single-event functional interrupt (SEFI) characterized up to LET = 43MeV-cm2/mg
    • Total ionizing dose (TID) RLAT/RHA characterized up to 30krad (Si)
  • Space-enhanced plastic (space EP):
    • Supports defense and aerospace applications
    • Controlled baseline
    • One assembly and test site
    • Extended product life cycle
    • Product traceability
    • Outgassing test performed as per ASTM E595
    • Vendor item drawing (VID) V62/24631
    • Military temperature range: –55°C to +125°C
    • Gold bond wire, NiPdAu lead finish
  • Eight pseudo- or four fully differential inputs
  • Simultaneous sampling of two channels
  • Excellent AC performance:
    • SNR: 93dB
    • THD: –98dB
  • Dual programmable and buffered 2.5V reference allows:
    • Two different input voltage range settings
    • Two-level PGA implementation
  • Programmable auto-sequencer
  • Integrated data storage (up to 4 per channel) for oversampling applications
  • 2-bit counter for safety applications
  • Radiation tolerant:
    • Single-event latch-up (SEL) immune up to LET = 43MeV-cm2/mg at 125°C
    • Single-event functional interrupt (SEFI) characterized up to LET = 43MeV-cm2/mg
    • Total ionizing dose (TID) RLAT/RHA characterized up to 30krad (Si)
  • Space-enhanced plastic (space EP):
    • Supports defense and aerospace applications
    • Controlled baseline
    • One assembly and test site
    • Extended product life cycle
    • Product traceability
    • Outgassing test performed as per ASTM E595
    • Vendor item drawing (VID) V62/24631
    • Military temperature range: –55°C to +125°C
    • Gold bond wire, NiPdAu lead finish
  • Eight pseudo- or four fully differential inputs
  • Simultaneous sampling of two channels
  • Excellent AC performance:
    • SNR: 93dB
    • THD: –98dB
  • Dual programmable and buffered 2.5V reference allows:
    • Two different input voltage range settings
    • Two-level PGA implementation
  • Programmable auto-sequencer
  • Integrated data storage (up to 4 per channel) for oversampling applications
  • 2-bit counter for safety applications

Description

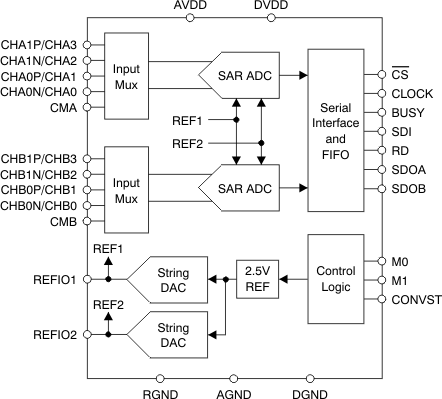

The ADC168M102R-SEP is a dual, 16-bit, 1MSPS analog-to-digital converter (ADC). This ADC has eight pseudo- or four fully differential input channels grouped into two pairs for simultaneous signal acquisition. The analog inputs are maintained differentially to the input of the ADC. Use the input multiplexer in either pseudo-differential mode or fully differential mode. Pseudo-differential mode supports up to four channels per ADC (4x2), and fully differential mode converts up to two inputs per ADC (2x2).

The ADC168M102R-SEP offers two programmable reference outputs, flexible supply voltage ranges, a programmable auto-sequencer, and several power-down features. The device also includes data storage up to four conversion results per channel.
