ACTIVE
Technology family |
LVT |
Supply voltage (min) (V) |
2.7 |
Supply voltage (max) (V) |
3.6 |
Number of channels |
16 |
IOL (max) (mA) |
12 |
Supply current (max) (µA) |
5000 |
IOH (max) (mA) |
-12 |
Input type |
TTL-Compatible CMOS |
Output type |
3-State |
Features |
Balanced outputs, Damping resistors, Over-voltage tolerant inputs, Partial power down (Ioff), Power up 3-state, Ultra high speed (tpd <5ns) |
Rating |
Catalog |
Operating temperature range (°C) |
-40 to 85 |

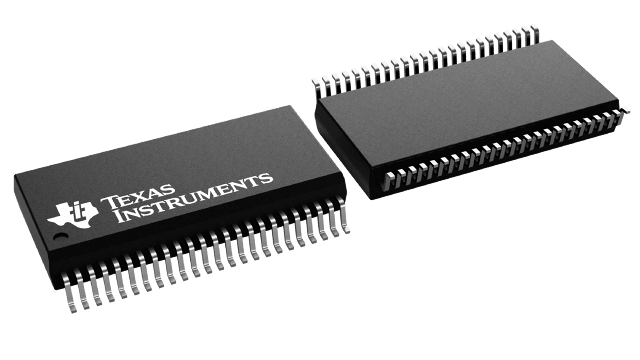

SSOP (DL)-48-164.358 mm² 15.88 x 10.35

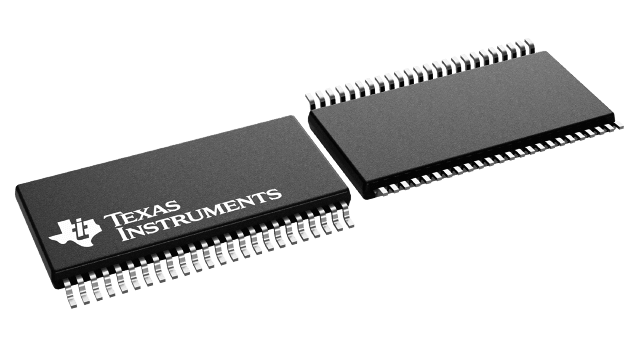

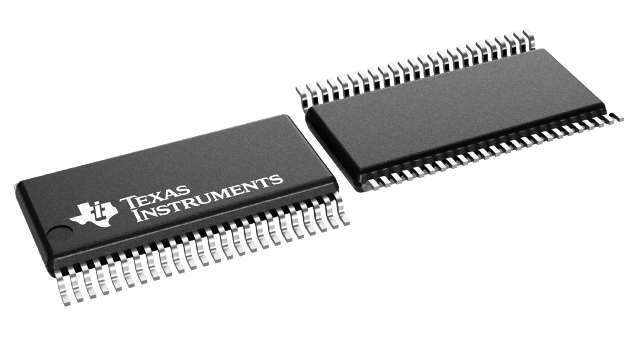

SN74LVT162244A
SN74LVT162244A:16-ch, 2.7-V to 3.6-V buffers with TTL-compatible CMOS inputs and 3-state outputs.Package:SSOP (DL)-48-164.358 mm² 15.88 x 10.35
