SY100EL16V

In Production

The SY100EL16V is a differential receiver. With fast output transition times, the SY100EL16V is ideally suited for interfacing with high-frequency sources. The SY100EL16V provides a VBB output for either single-ended use or as a DC bias for AC coupling to the device. The VBB pin should be used only as a bias for the SY100EL16V as its current sink/source capability is limited. Whenever used, the VBB pin should be bypassed to ground via a 0.01μF capacitor. Under open input conditions (pulled to VEE), internal input clamps will force the Q output LOW....

Microchip Technology SY100EL16V Product Info

16 April 2026 0

Parameters

Input

ECL/PECL

Output

ECL/PECL

Supply Voltage

3.3/5V

Max Freq (GHz)

0

Icc (mA)

26

OE

False

Input Mux

False

Number Of Outputs

0

Max Prop Delay (ps)

425

Features

  • 3.3V and 5V power supply options
  • 250ps propagation delay
  • High bandwidth output transitions
  • Internal 75KO input pull-down resistors

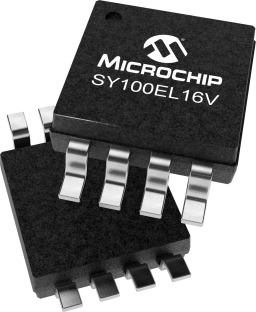

  • Available in 8-pin (3mm x 3mm) MSOP and SOIC package

Description

The SY100EL16V is a differential receiver. With fast output transition times, the SY100EL16V is ideally suited for interfacing with high-frequency sources.
The SY100EL16V provides a VBB output for either single-ended use or as a DC bias for AC coupling to the device. The VBB pin should be used only as a bias for the SY100EL16V as its current sink/source capability is limited. Whenever used, the VBB pin should be bypassed to ground via a 0.01μF capacitor.
Under open input conditions (pulled to VEE), internal input clamps will force the Q output LOW.
