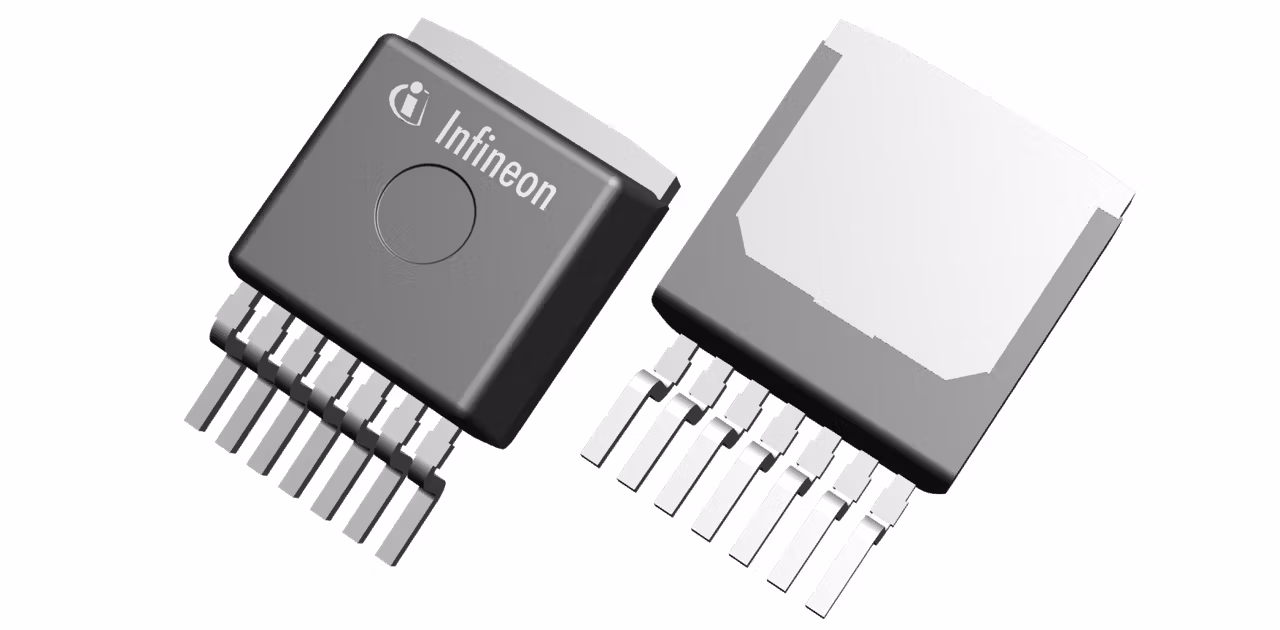

TLS850F0TA V33

Infineon Technologies TLS850F0TA V33 Product Info

16 April 2026 0

Accuracy	2 %
Base Product	TLS850Fxxx
Dropout Voltage	80 mV
Early Warning	No
Enable (=Inhibit)	Yes
Hold	No
Operating Temperature range	-40 °C to 150 °C
Operating Voltage range	3 V to 40 V
Output Current max	500 mA
Output Voltage Type	3.3 V
Over Voltage Protection	No
Planned to be available until at least	n.a
Power Fail	No
Power Good	No
Qualification	Automotive
Quiescent Current	40 µA
Regulator Type	High Performance
Reset	Yes
Status Output	No
Watchdog	Yes

Domain controller for ADAS & autonomous driving, Electric brake booster

Wide Input Voltage Range from 3.0 V to 40 V
Fixed Output Voltage 3.3 V
Output Voltage Precision ≤ ± 2 %
Output Current Capability up to 500 mA
Ultra Low Current Consumption typ. 40 μA
Very Low Dropout Voltage typ. 80 mV@100 mA
Stable with Ceramic Output Capacitor of 1 μF
Delayed Reset at Power-On: 16.5 ms
Adjustable Reset Threshold down to 2.50 V
Watchdog with fixed timing and current dependent deactivation: 96 ms, Activated at IQ > 5.5 mA
Enable, Undervoltage Reset, Overtemperature Shutdown
Output Current Limitation
Wide Temperature Range
Green Product (RoHS compliant)
AEC Qualified
