BGA616
  • BGA616

BGA616

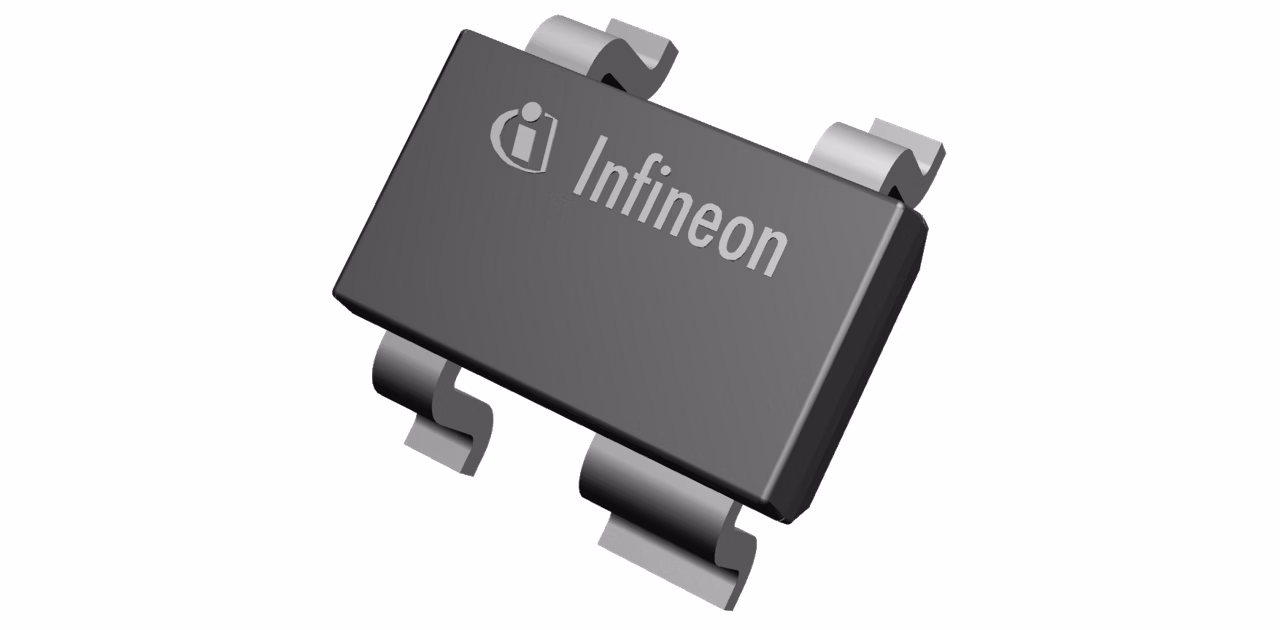

The BGA616 is a broadband matched general purpose MMIC amplifier in a Darlington configuration. It is optimizedfor a typical supply current of 60 mA. The BGA616 is based on Infineon Technologies’ B7HF Silicon Germanium technology.

Infineon Technologies BGA616 Product Info

16 April 2026 0

Parameters

Frequency

DC-6 GHz

Gain

17.5 dB

I

60 mA

NF

2.6 dB

P-1dB (in)

18

VCC operating

6 V

Features

  •  Cascadable 50 Ω-gain block
  •  3 dB-bandwidth: DC to 2.7 GHz with 19.0 dB typical gain at 1.0 GHz
  •  Compression point P-1dB = 18 dBm at 2.0 GHz
  • Noise figure F50Ω = 2.60 dB at 2.0 GHz
  •  Absolute stable
  • 70GHz fT - Silicon Germanium technology
  •  1 kV HBM ESD protection (Pin-to-Pin)
  • Pb-free (RoHS compliant) package
