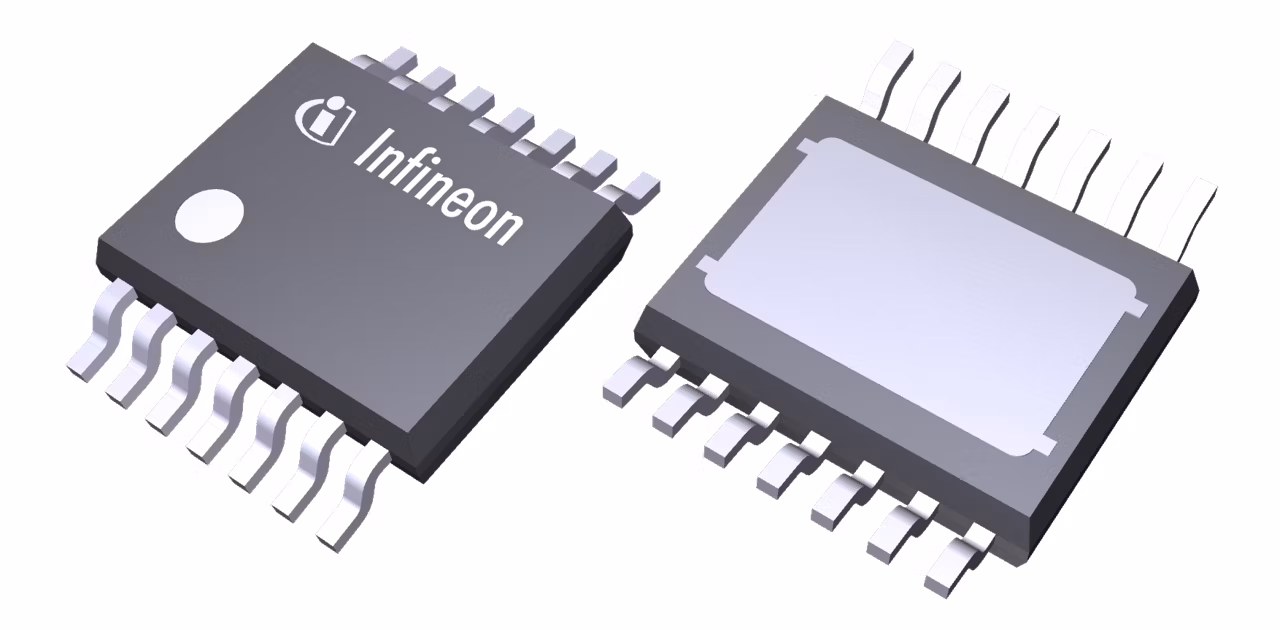

TLD2132-1EP
  • TLD2132-1EP

TLD2132-1EP

Active and preferred

The TLD2132-1EP is designed to control LEDs with a current up to 240 mA. In typical automotive applications the device is capable of driving 3 red LEDs with a current up to 180 mA and even above, if not limited by the overall system thermal properties. Practically, the output current is controlled by an external resistor or reference source, independently from load and supply voltage changes.

Infineon Technologies TLD2132-1EP Product Info

16 April 2026 0

Parameters

Control Inputs

1

Family

LITIX™ Basic+

Iq

0.1 µA

Language

SPICE

Open Load Detection

Yes

Operating Temperature range

-40 °C to 150 °C

Output Channels

1

Output Current per channel range

15 mA to 240 mA

Parallelized Output Current

240 mA

Planned to be available until at least

2038

Power Offloading

No

Product Category

Automotive Lighting ICs

PWM engine

No

PWM

Yes

Short Circuit Protection

Yes

Short GND Detection

Yes

Single LED short detection

Yes

Tolerance

5%

Topology

Linear

VQ (multiple)

40.0 V

VS range

5.5 V to 40 V

Features

  • Single channel device with integrated
  • High output current (up to 240 mA)
  • Low current consumption in sleep mode
  • Low O/P leakage when channel is “off”
  • Low current consumption during fault
  • Output currents’via external low power
  • High precision digital dimming supported
  • Intelligent fault management: up to 16
  • Polarity protection allows reduction
  • Overload protection
  • Wide temperature range:-40°C<150°C
