TLE9932EVW40C
  • TLE9932EVW40C

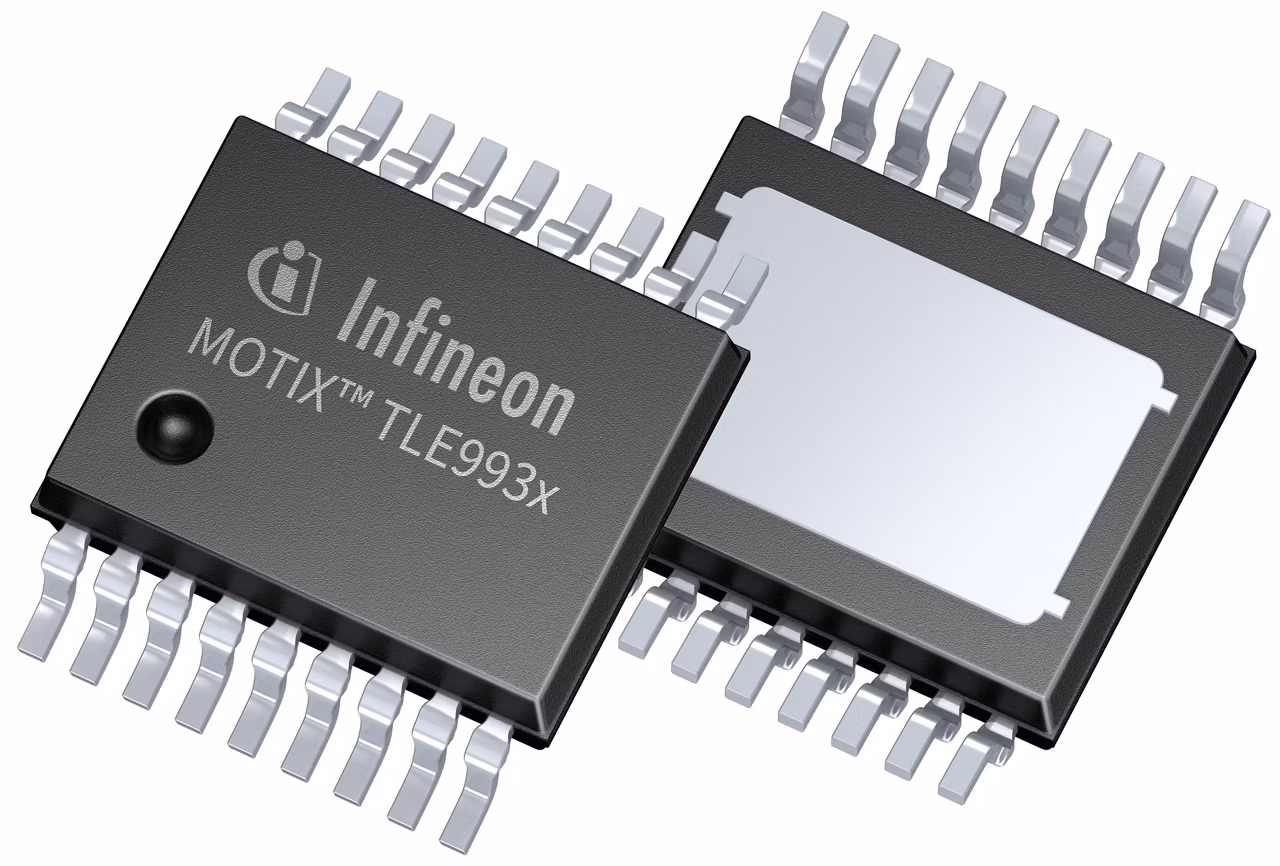

TLE9932EVW40C

The MOTIX™ TLE9932EVW40C is a fully integrated three-phase SoC featuring an Arm® Cortex®-M23 core, LIN transceiver, gate driver, voltage regulator, and MOSFETs on a single chip. Its integrated B6 Bridge supports up to 2A peak current, ensuring compact PCB size. Ideal for small BLDC motors, this solution enhances automotive actuators like HVAC flaps and valves with efficient and space-saving design.

Infineon Technologies TLE9932EVW40C Product Info

16 April 2026 0

Parameters

Classification

ISO 26262-compliant (ASIL B)

Family

MOTIX™ 32-bit motor control SoC

Flash

48 kByte

Frequency

40 MHz

GPIO

6

Interfaces

PWM + LIN (AA)

MCU

Arm® Cortex®-M23

MOSFET Drivers

yes

Motor Driver

3-phase bridge driver

Planned to be available until at least

2038

Power Stage

OptiMOS™ 7 MOSFETs

RAM

4 kByte

SD-ADC

no

Supply Voltage range

5.5 V to 29 V

Temperature range

-40 °C to 175 °C

Features

  • 32-bit Arm® Cortex®-M23 core, 40 MHz
  • Single power supply from 5.5 V to 29 V
  • On-chip clock generation
  • 48 KB flash, 4 KB RAM, EEPROM emulation
  • LIN-AA with protocol support (LINUART)
  • High voltage monitoring pin (MON)
  • Fast synchronous communication (SSC)
  • 3-phase motor driver incl. B6-Bridge
  • Fast 12-bit ADC up to 14 inputs
  • Temperature range: -40°C to 175°C
  • TSDSO-18 package
  • Integrated 3-phase current measurement

Description

  • Compact PCB design
  • Reduced BOM cost vs. discrete
  • Improved hardware features
  • Functional safety (ASIL-B)
  • Cybersecurity (TrustZone)
  • Premium design-in experience
