IRFS4115-7P
  • IRFS4115-7P

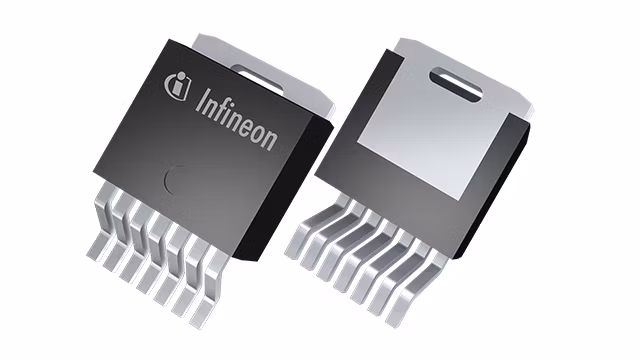

IRFS4115-7P

The StrongIRFET™ power MOSFET family is optimized for low RDS(on) and high current capability. The devices are ideal for low frequency applications requiring performance and ruggedness. The comprehensive portfolio addresses a broad range of applications including DC motors, battery management systems, inverters, and DC-DC converters.

Infineon Technologies IRFS4115-7P Product Info

16 April 2026 0

Parameters

Budgetary Price €/1k

1.69

ID (@25°C) max

105 A

Moisture Sensitivity Level

1

Mounting

SMD

Operating Temperature range

-55 °C to 175 °C

Package

D2PAK 7pin (TO-263 7pin)

Polarity

N

Ptot max

380 W

Qgd

28 nC

QG (typ @10V)

73 nC

RDS (on) (@10V) max

11.8 mΩ

RthJC max

0.4 K/W

Tj max

175 °C

VDS max

150 V

VGS(th) range

3 V to 5 V

VGS(th)

4 V

VGS max

20 V

Apps

Domestic robots

Features

  • Optimized for broadest availability
  • Product qualification according to JEDEC
  • Industry standard surface mount power
  • Higher current-rating (by 23%)

Description

  • Wide distribution availability
  • Industry standard qualification level
  • Drop-in replacement with standard pinout
  • High power density
