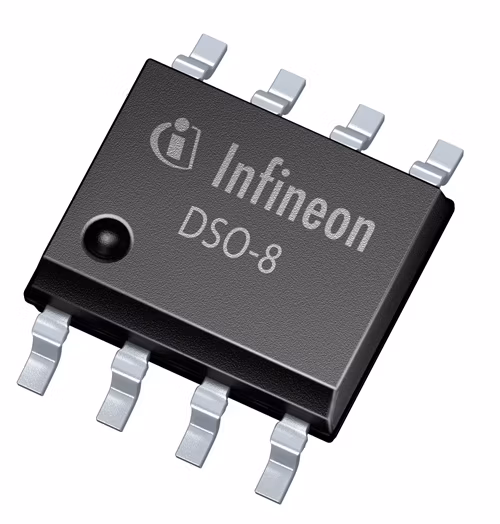

BSO615N G
  • BSO615N G

BSO615N G

OptiMOS™ 60V is a perfect choice for synchronous rectification in switched mode power supplies (SMPS) such as those found in servers and desktops and tablet charger. In addition these devices can be used for a broad range of industrial applications including motor control, solar micro inverter and fast switching DC-DC converter.

Infineon Technologies BSO615N G Product Info

16 April 2026 0

Parameters

Budgetary Price €/1k

0.33

Ciss

300 pF

Coss

90 pF

ID (@25°C) max

2.6 A

IDpuls max

10.4 A

Operating Temperature range

-55 °C to 150 °C

Package

SO-8

Polarity

N+N

Ptot max

2 W

QG (typ @10V)

14 nC

RDS (on) (@4.5V) max

150 mΩ

RDS (on) (@4.5V LL) max

150 mΩ

RthJC max

35 K/W

Rth

35 K/W

VDS max

60 V

VGS(th) (typ) range

1.2 V to 2 V

VGS(th) (typ)

1.6 V

Features

  • Excellent gate charge x RDS(on) product (FOM)
  • Very low on-resistance RDS(on)
  • Ideal for fast switching applications
  • RoHS compliant - halogen free
  • MSL1 rated

Description

  • Highest system efficiency
  • Less paralleling required
  • Increased power density
  • System cost reduction
  • Very low voltage overshoot
