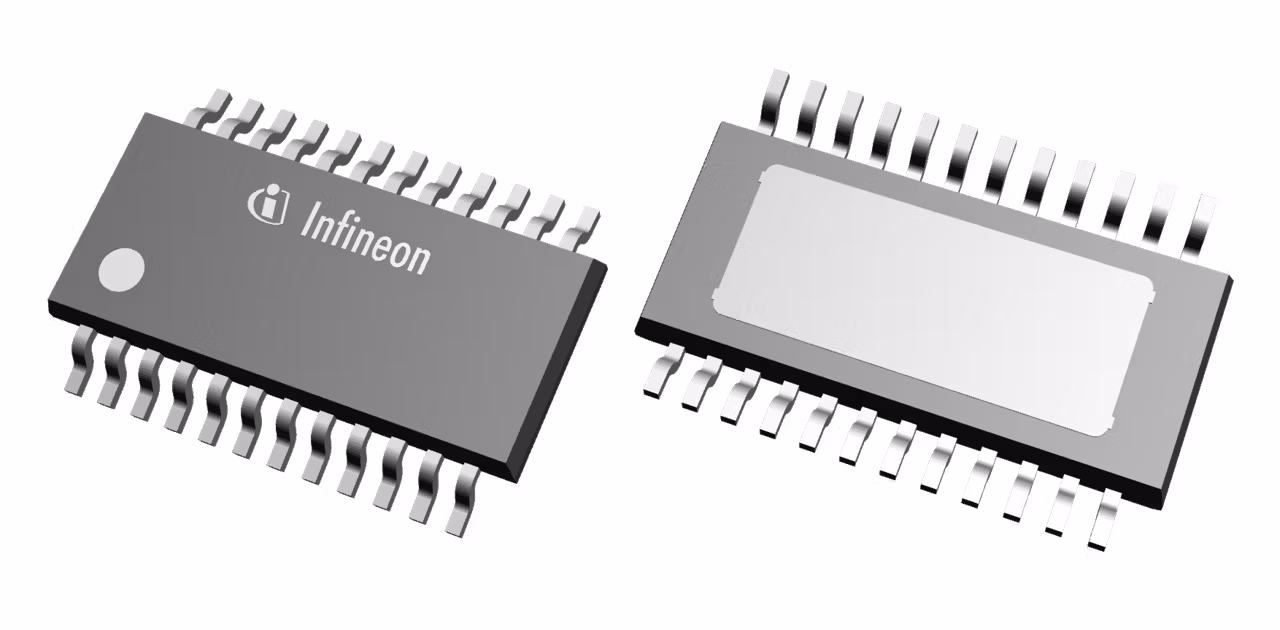

TLE9461-3ES V33
  • TLE9461-3ES V33

TLE9461-3ES V33

Active and preferred

CAN SBC for automotive applications. 5V LDO for microcontroller, off-board sensor supply, HS-CAN transceiver (CAN FD, Partial Networking), high-voltage GPIO, 16-bit SPI. Configurable watchdog, Fail Output, undervoltage reset. Low-power modes. Wake-up via message, monitoring input, cyclic wake.

Infineon Technologies TLE9461-3ES V33 Product Info

16 April 2026 1

Parameters

Compatible Microcontrollers

TRAVEO™ T1G, T2G, AURIX™ TC2x, PSOC™ 4x

Family

OPTIREG™ Lite SBC

Output Drivers

1 x Charge Pump

Planned to be available until at least

2039

Quiescent Current

15µA (typ.) Sleep Mode

Standby Current

44µA (typ.) Stop Mode

Transceiver

1 x CAN FD ISO 11898 - 2

Transmission Rate max

5 MBit/s

Voltage Regulator Output ((VCC1))

3.3V / 150 mA

Voltage Regulator Output ((VCC2))

5V / 100 mA

Wake-up Inputs

Wake Pins, CAN

Apps

Active suspension control, Automotive telematics control unit (TCU)

Features

  • Current consumption in Stop & Sleep Mode
  • Wake in SBC Normal-, Stop- & Sleep Mode
  • Sense in SBC Normal-, Stop- & Sleep Mode
  • Low-Drop Linear Voltage Regulator 5 V
  • Protected features for off-board usage
  • High-Speed CAN transceiver
  • Charge pump-Output for N-channel MOSFET
  • Universal High-Voltage Wake Input
  • GPIO configurable as Fail Output
  • HIgh-Voltage Measurement Function
  • Fail Outputs for Fail-Safe signalization
