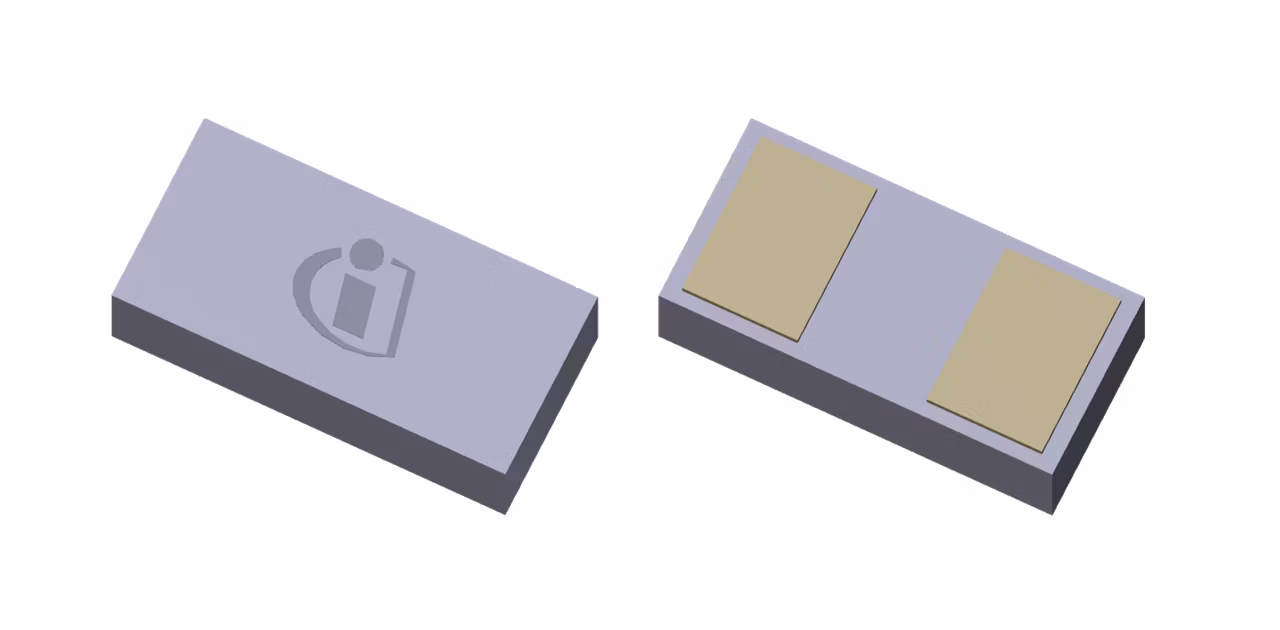

ESD259-B1-W0201
  • ESD259-B1-W0201

ESD259-B1-W0201

Active and preferred

Low Clamping Voltage Bi Directional ESD/ Transient Protection DiodeTVS (transient voltage suppressor)Bi-directional, 16 V, 4.2 pF, 0201, RoHS and halogen free compliant

Infineon Technologies ESD259-B1-W0201 Product Info

16 April 2026 0

Parameters

CL max

6 pF

CL

4.2 pF

Green

RoHS compliant, Halogen free

IEFT

50A

IPP

2.4 A

IR max

500 nA

IR

10 nA

Protected Lines

1

Rdyn (forward)

0.29 Ω

Rdyn (reverse)

0.29 Ω

Vcl typ. reverse (TLP 16A)

24 V

VESD range

-15 kV to 15 kV

VWM range

-16 V to 16 V

Apps

Mobile device and smartphone solutions, Health and lifestyle, Smart thermostat

Features

  • ESD/transient protection according to:
  • IEC61000-4-2 (ESD): ±15 kV (air/contact discharge)
  • IEC61000-4-4 (EFT): ±2.5 kV/±50 A (5/50 ns)
  • IEC61000-4-5 (Surge): ±2.5 A (8/20 μs)
  • Bi-directional working voltage up to: VRWM = ±16 V
  • Line capacitance: CL = 4.2 pF (typical) at f = 1 MHz
  • Optimized RF-linearity performance
  • Ultra Low Dynamic Resistance RDYN = 0.29 Ω typical
  • Small form factor SMD size 0201, low profile (0.58 mm x 0.28 mm x 0.15 mm)
  • Pb-Free(RoHS compliant) and halogen free package
