TLE6217G
  • TLE6217G

TLE6217G

The TLE 6217 GP is fully protected by embedded protection functions and designed for automotive and industrial applications. Each channel has its own status signal for diagnostic feedback. Therefore the TLE 6217 GP is particularly suitable for ABS or Powertrain Systems.

Infineon Technologies TLE6217G Product Info

16 April 2026 0

Parameters

Channels

4

Comments

inductive and resistive loads (e.g. Solenoids, Injectors, Valves, Relays)

High Side / Low Side

0/4

ID(lim)(multiple)

2 x 5.0 ; 2x 3.0 A

Operating Temperature range

-40 °C to 150 °C

Over Current Protection

Shutdown

Pin Count

20 Pins

Planned to be available until at least

n.a

RDS (on) (multiple)

2 X 0.5; 2 X 0.75 Ohm (typ @ 150°C)

Thermal Class

Heatslug down

toff max

60 µs

ton max

50 µs

VDD

5.0 - 32 V

VDS(CL) range

45 V to 60 V

Features

  • Shorted Circuit Protection
  • Overtemperature Protection
  • Overvoltage Protection
  • Parallel Control of the Inputs (PWM Applications)
  • Separate Diagnostic Pin for Each Channel

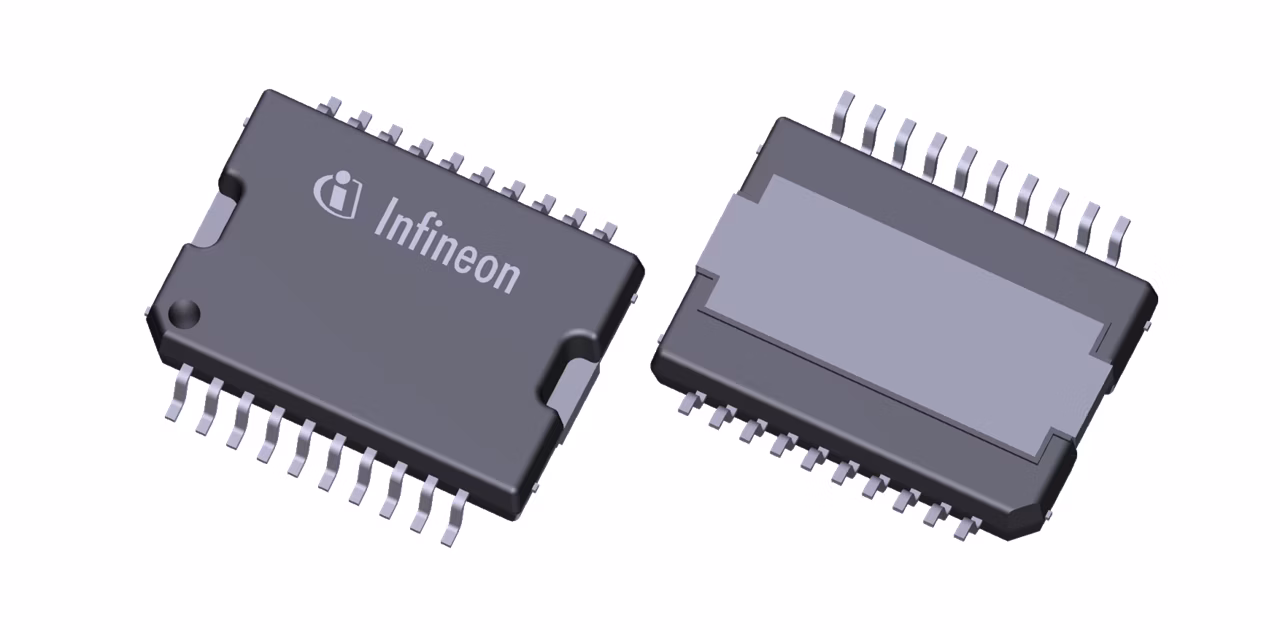

  • Power - SO 20 - Package with integrated cooling area
  • Standby mode with low current consumption
  • μC compatible Input
  • Electrostatic Discharge (ESD) Protection
  • Green Product (RoHS Compliant)
  • AEC Qualified
