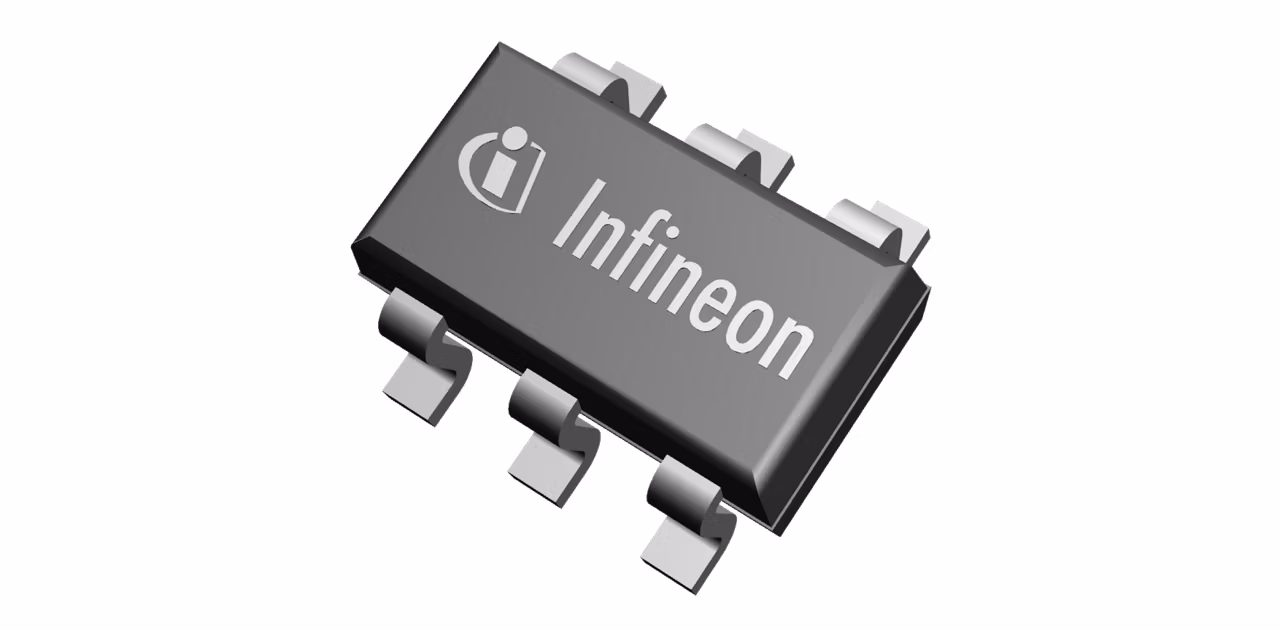

TLE4966K
  • TLE4966K

TLE4966K

The TLE4966K is an integrated circuit double Hall-effect sensor designed specifically for highly accurate applications. Precise magnetic switching points and high temperature stability are achieved by active compensation circuits and chopper techniques on chip. They provide a speed signal at Q2 for every magnetic pole pair and a direction information at Q1, which is provided before the speed signal.

Infineon Technologies TLE4966K Product Info

16 April 2026 0

Parameters

Bhyst

15 mT

Bop

7.5 mT

Brp

-7.5 mT

Interfaces

open collector

Language

Magnetics

Product Category

Sensors

Product Description

High precision automotive qualified dual Hall latch

Supply Voltage range

2.7 V to 24 V

Temperature range

-40 °C to 150 °C

Type

Double Hall

Features

  • 2.7 V to 24 V supply voltage operation
  • Operation from unregulated power supply
  • High sensitivity and high stability of the magnetic switching points
  • High resistance to mechanical stress by Active Error Compensation
  • Reverse battery protection (-18 V)
  • Superior temperature stability
  • Peak temperatures up to 195°C without damage
  • Low jitter (typ. 1 μs)
  • Digital output signals
  • Bipolar version
  • Excellent matching between the 2 Hall probes
  • Hall plate distance 1.45 mm
  • Direction & speed information
  • Direction signal switches before the speed signal
  • SMD package PG-TSOP6-6-5
