BSC014N04LS

Active and preferred

Infineon's 40V and 60V product families feature not only the industry’s lowest R DS(on) but also a perfect switching behavior for fast switching applications. 15% lower R DS(on) and 31% lower figure of merit (R DS(on) x Q g) compared to alternative devices has been realized by advanced thin wafer technology.

Infineon Technologies BSC014N04LS Product Info

16 April 2026 0

Parameters

Budgetary Price €/1k	0.5
Ciss	4300 pF
Coss	1200 pF
ID (@25°C) max	176 A
IDpuls (@25°C) max	820 A
Operating Temperature range	-55 °C to 175 °C

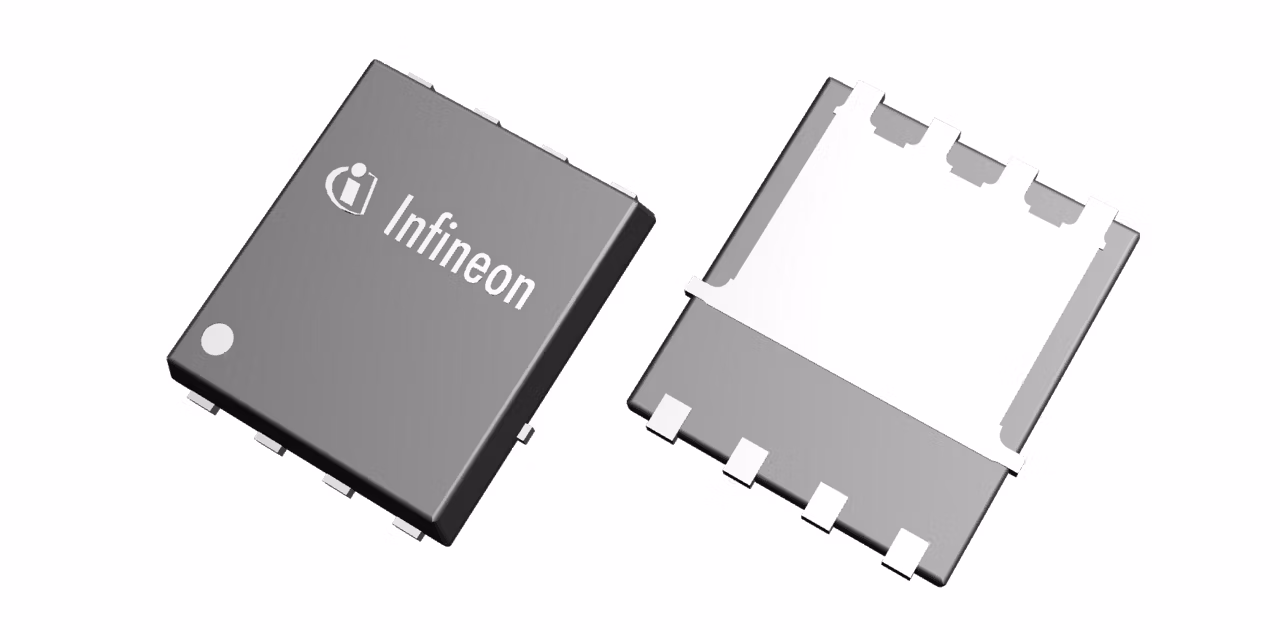

Package	SuperSO8 5x6
Polarity	N
Ptot max	96 W
QG (typ @10V)	61 nC
QG (typ @4.5V)	31 nC
RDS (on) (@10V) max	1.4 mΩ
RDS (on) (@4.5V) max	1.9 mΩ
RDS (on) (@4.5V LL) max	1.9 mΩ
Rth	1.3 K/W
Special Features	Logic Level
VDS max	40 V
VGS(th) range	1.2 V to 2.2 V
VGS(th)	1.42 V

Apps

Medium voltage IBC (48 V), Domain controller for ADAS & autonomous driving, Consumer electronics, Battery energy storage (BESS), DIN rail power supply solutions

Features

Optimized for synchronous rectification
15% lower RDSon than others
31% better FOM over similar devices
RoHS compliant - halogen free
MSL1 rated

Description

Highest system efficiency
Less paralleling required
Increased power density
System cost reduction

Very low voltage overshoot
