IPTC012N08NM5
  • IPTC012N08NM5

IPTC012N08NM5

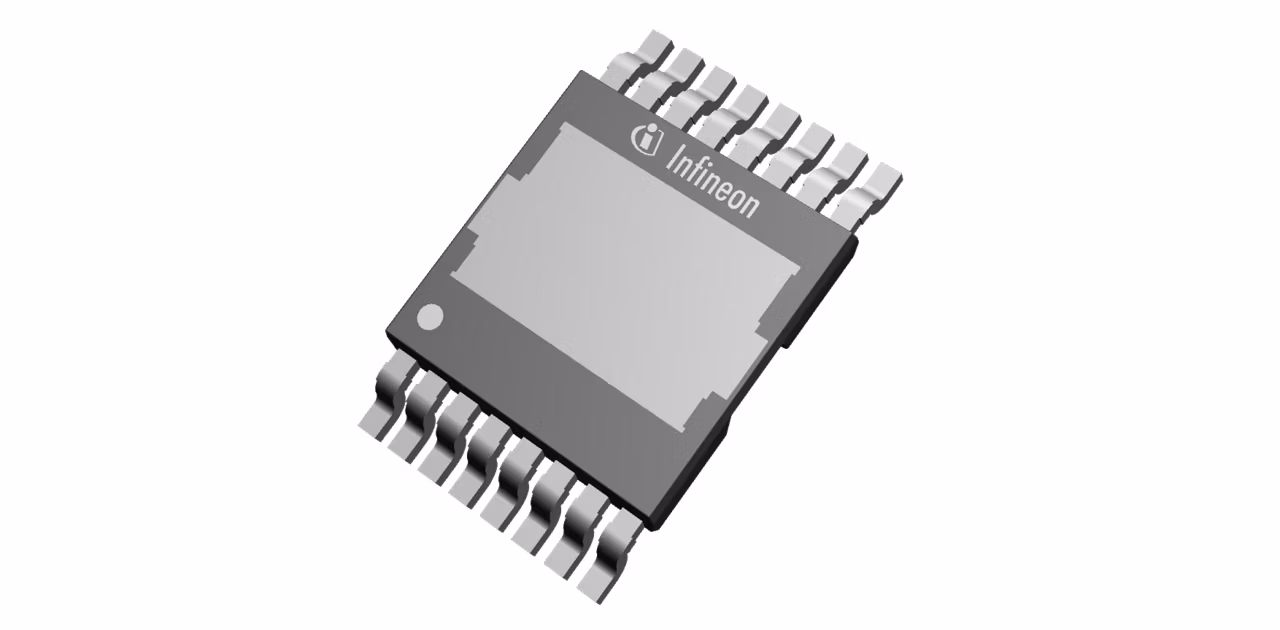

This OptiMOS™ 5 MOSFET in TOLT (TO-Leaded top side-cooling) package, combines package innovation with OptiMOS™ 5 technology for best-in-class products in 80 V as well as high current rating for high power density designs. With top side-cooling the drain is exposed at the surface of the package and 95 percent of the heat dissipation can be promoted directly to the heatsink achieving better thermal performance compared to TOLL package.

Infineon Technologies IPTC012N08NM5 Product Info

16 April 2026 0

Parameters

Budgetary Price €/1k

3.35

ID (@25°C) max

396 A

IDpuls max

1584 A

Mounting

SMT

Operating Temperature range

-55 °C to 175 °C

Package

TOLT (HDSOP-16)

Pin Count

16 Pins

Polarity

N

Ptot max

375 W

QG (typ @10V)

175 nC

RDS (on) (@10V) max

1.2 mΩ

VDS max

80 V

VGS(th) range

2.2 V to 3.8 V

VGS(th)

3 V

Features

  • Low RDS(on)
  • High current rating >300 A
  • Top side cooling
  • Negative stand-off
  • Sn-free exposed pad

Description

  • Increased system efficiency enabling extended battery life time
  • High power density
  • Superior thermal performance
  • Saving in cooling system
  • Minimized thermal resistance to heatsink
