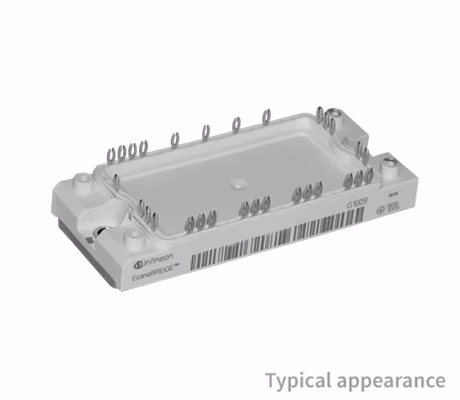

TDB6HK180N22RRP_B11
  • TDB6HK180N22RRP_B11

TDB6HK180N22RRP_B11

Active and preferred

eupec™ 2200 V, 180 A EconoBRIDGE™ - half controlled three phase bridge module with brake chopper for a more compact converter design.

Infineon Technologies TDB6HK180N22RRP_B11 Product Info

16 April 2026 0

Parameters

Configuration

Half Controlled Bridges

Dimensions (length)

107 mm

Dimensions (width)

45 mm

Housing

EconoBRIDGE™

I(FSM) max

870 A

IRMSM

150 A

Voltage Class max

2200 V

Apps

Motor control

Features

  • 2.5 kV AC 1min insulation
  • Al2O3 substrate
  • High power density
  • High mechanical robustness
  • Isolated Copper base plate
  • PressFIT Technology
  • RoHS compliant
  • Rect. blocking voltage up to 2.2 kV
