IPA028N04NM3S
  • IPA028N04NM3S

IPA028N04NM3S

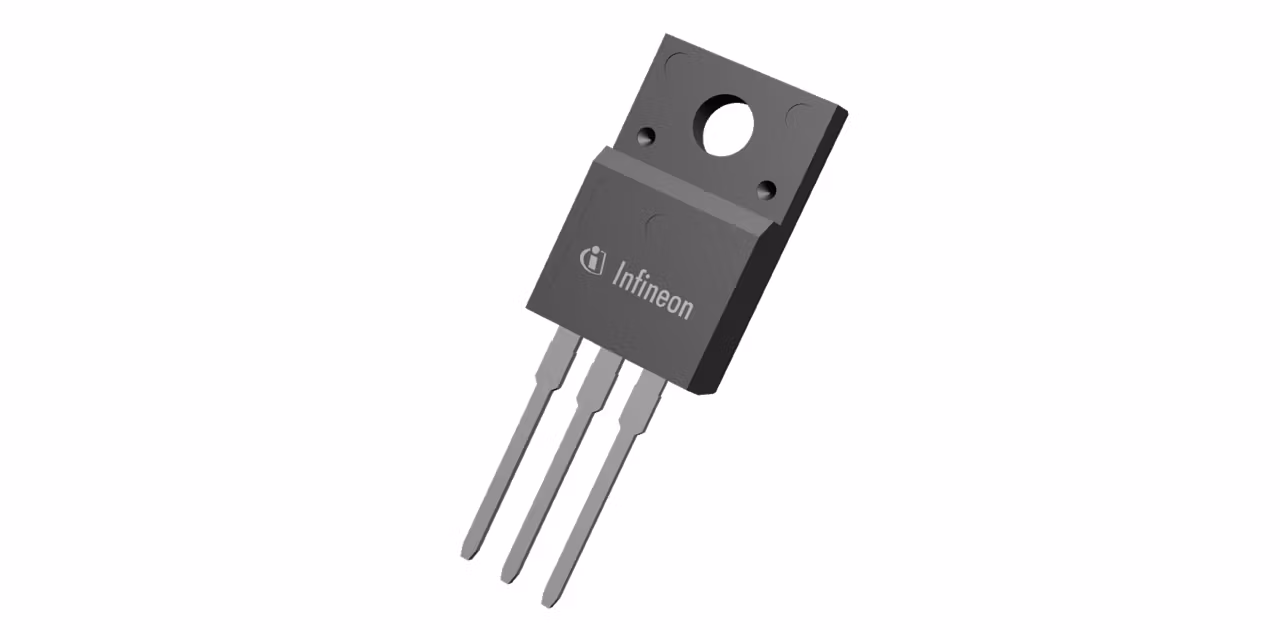

This OptiMOS™ 3 power MOSFET 40 V in TO-220 FullPAK is designed to meet the requirements for improved system efficiency while reducing system cost, offering 2.8mOhm RDS(on) and optimized for TV power supply, desktop, adapter and gaming applications, featuring optimized price/performance ratio thanks to increased power density as well as improved efficiency: ideal solution for synchronous rectification.

Infineon Technologies IPA028N04NM3S Product Info

16 April 2026 1

Parameters

Budgetary Price €/1k

0.95

ID (@ TC=25°C) max

89 A

ID (@25°C) max

89 A

IDpuls max

356 A

Operating Temperature range

-55 °C to 175 °C

Package

TO-220 FullPAK

Polarity

N

QG (typ @10V)

90 nC

RDS (on) (@10V) max

2.8 mΩ

VDS max

40 V

VGS(th) range

2 V to 4 V

VGS(th)

3 V

Features

  • Low voltage overshoot
  • Low on-state resistance (RDS(on))
  • Electrically isolated package

Description

  • Less paralleling required
  • No heat to circuit board
  • Less heat generation
  • Fits TO-220 footprint
