IQD063N15NM5SC
  • IQD063N15NM5SC

IQD063N15NM5SC

Active and preferred

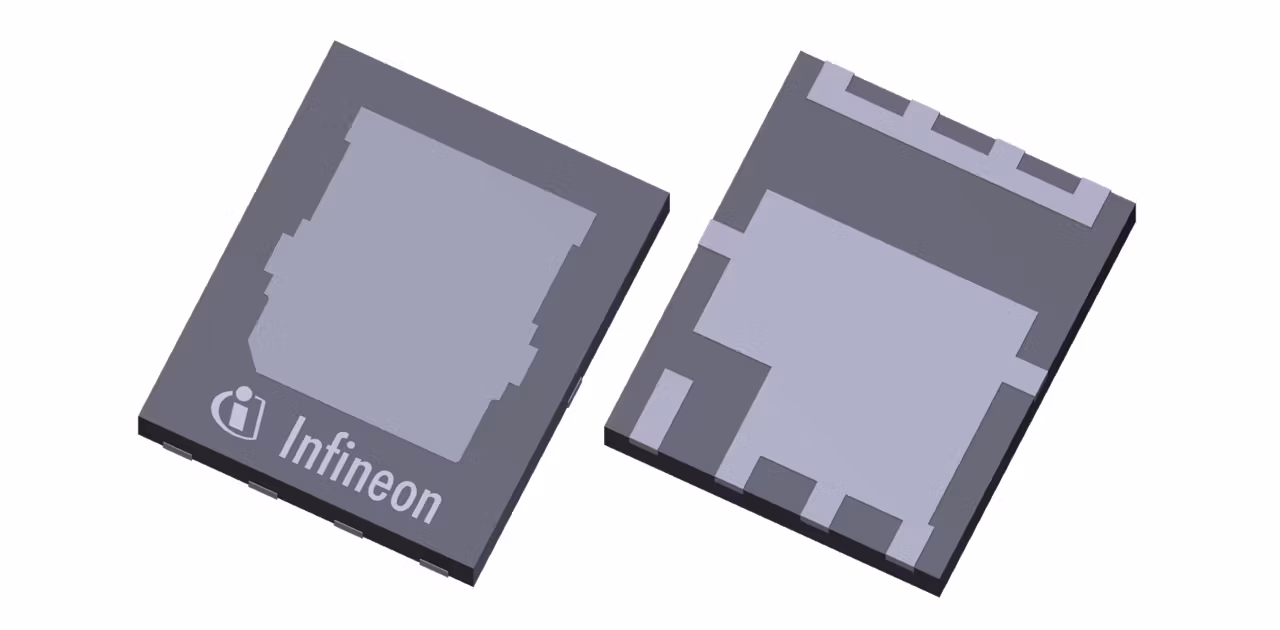

The power MOSFET IQD063N15NM5SC comes with a low RDS(on) of 6,32 mOhm combined with outstanding thermal performance for easy power loss management. Moreover, with the dual-side cooling package five times more power can be dissipated compared to the overmolded package. This enables higher system efficiency and power density for a large variety of end applications.

Infineon Technologies IQD063N15NM5SC Product Info

16 April 2026 1

Parameters

ID (@25°C) max

151 A

Operating Temperature range

-55 °C to 175 °C

Package

PQFN 5x6 Source-Down

Polarity

N

QG (typ @10V)

48 nC

RDS (on) (@10V) max

6.32 mΩ

Special Features

Dual-Side Cooling

VDS max

150 V

VGS(th) range

3 V to 4.6 V

VGS(th)

3.8 V

Apps

Automotive BMS, Light electric vehicle solutions, Telecommunications infrastructure, Multicopters and drones, Power tools, Low-voltage drives, Photovoltaic, Robotics, Power conversion

Features

  • Cutting edge 150 V silicon technology
  • Outstanding FOMs
  • Improved thermal performance
  • Ultra-low parasitics
  • Maximized chip/package ratio

Description

  • Minimized conduction losses
  • Reduced voltage overshoot
  • Increased maximum current capability
  • Fast switching
  • Less device paralleling required
  • Lowest RDS(on) on a 5x6 footprint
  • Improved thermal performance
  • Easy thermal management
  • Best switching performance
  • Industry-standard package
