T470N16TOF
  • T470N16TOF

T470N16TOF

Active and preferred

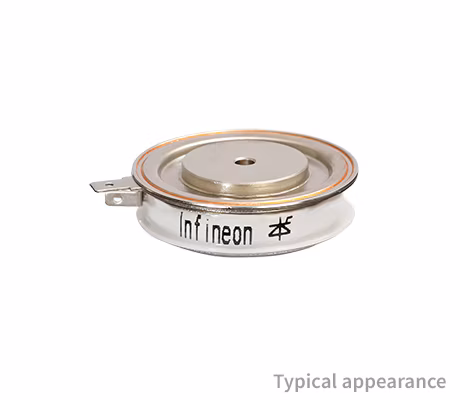

The T470N Phase Control Thyristor discs are assembled in high reliable, robust and hermetic sealed ceramic housings with a dia of 41mm and a height of 14mm.

Infineon Technologies T470N16TOF Product Info

16 April 2026 0

Parameters

Clamping force [kn] range

4 to 8

Configuration

Electrical Triggered Phase Control Thyristor

Housing

Disc dia 42mm height 14mm / Ceramic

ITAVM/TC [A/°C] (@180° el sin)

470/85

ITAVM

470 (180 ° el sin)

ITSM [A] (@10ms, Tvj max)

6350

ITSM

6350 A

rT [mΩ] (@Tvj max) max

0.75

RthJC [K/kW] (@180° el sin) max

51

tq [µs]

250

Tvj [°C] max

125

VDRM / VRRM [V]

1600

VDRM/ VRRM (V)

1600 V

VT/IT [V/kA] (@Tvj max)

1.85/1.2

VT0 [V] (@Tvj max) max

0.8

∫I2dt [A²s · 103] (@10ms, Tvj max)

202

Apps

Traction, Wind power, Motor control, Power conversion

Features

  • Full blocking capability 50/60 Hz
  • High DC blocking stability
  • High surge current capability
  • High turn-on di/dt capability
  • High dv/dt capability
