T3801N36TOF VT
  • T3801N36TOF VT

T3801N36TOF VT

Active and preferred

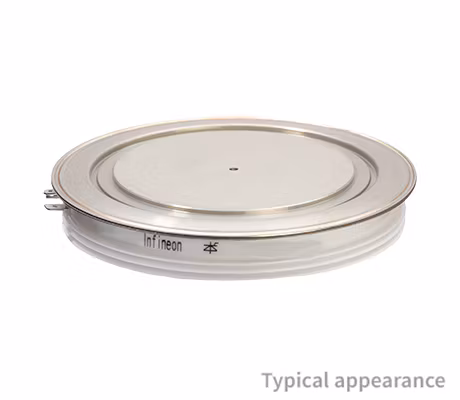

The T3801N Phase Control Thyristor discs are assembled in high reliable, robust and hermetic sealed ceramic housings with a dia of 150mm and a height of 26mm.

Infineon Technologies T3801N36TOF VT Product Info

16 April 2026 0

Parameters

Clamping force [kn] range

63 to 91

Configuration

Electrical Triggered Phase Control Thyristor

Housing

Disc dia 150mm height 26mm / Ceramic

ITAVM/TC [A/°C] (@180° el sin)

3830/85

ITAVM

4150 (180 ° el sin)

ITSM [A] (@10ms, Tvj max)

87000

ITSM

87000 A

rT [mΩ] (@Tvj max) max

0.145

RthJC [K/kW] (@180° el sin) max

4.8

tq [µs]

300

Tvj [°C] max

125

VDRM / VRRM [V]

3600

VDRM/ VRRM (V)

3600 V

VT/IT [V/kA] (@Tvj max)

1.40/4.0

VT0 [V] (@Tvj max) max

0.82

∫I2dt [A²s · 103] (@10ms, Tvj max)

37850

Features

  • Full blocking capability 50/60 Hz
  • High DC blocking stability
  • High surge current capability
  • High turn-on di/dt capability
  • High dv/dt capability
