ISC036N04NM5
  • ISC036N04NM5

ISC036N04NM5

Active

With the OptiMOS™5 40V normal level product family Infineon offers a benchmark solution for applications requiring normal level (higher threshold voltage) drive capability. The high Vth in the normal level portfolio offers immunity to false turn-on due to noisy environments. In addition, lower QGD/QGS ratios (CGD/CGS divider ratio) reduce the peak of the gate voltage spikes, further contributing to the robustness against unwanted turn-on.

Infineon Technologies ISC036N04NM5 Product Info

16 April 2026 0

Parameters

Budgetary Price €/1k

0.28

ID (@25°C) max

98 A

IDpuls max

392 A

Operating Temperature range

-55 °C to 175 °C

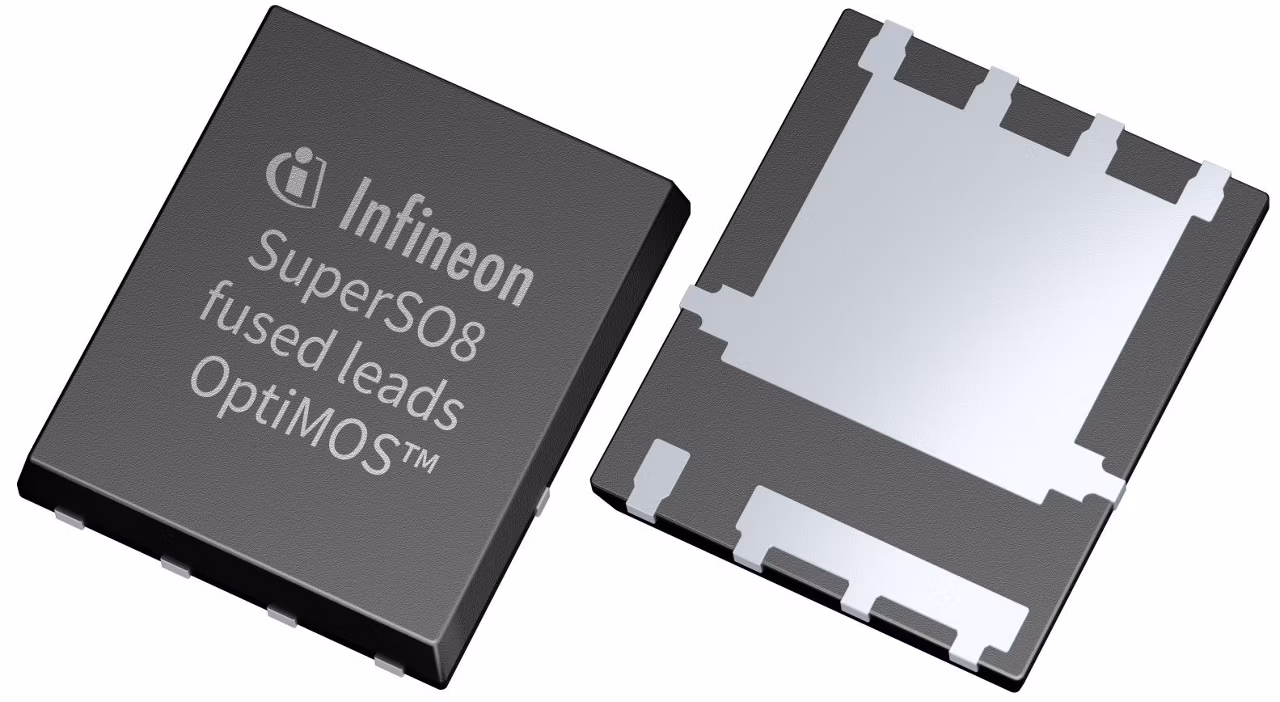

Package

SuperSO8 5x6

Polarity

N

Ptot max

63 W

QG (typ @10V)

21 nC

RDS (on) (@10V) max

3.6 mΩ

Special Features

Fused leads

VDS max

40 V

VGS(th) range

2.2 V to 3.4 V

Apps

Vacuum cleaners, Programmable logic controller (PLC)

Features

  • Normal level gate threshold
  • 175°C junction temperature
  • Charge ratio for dv/dt immunity
  • Low gate charge
  • Superior thermal resistance
  • Strong SOA (safe operating area) rating

Description

  • Minimized Losses for Higher Efficiency
  • Support advance motor control techniques
  • Handle high surge current during in rush
