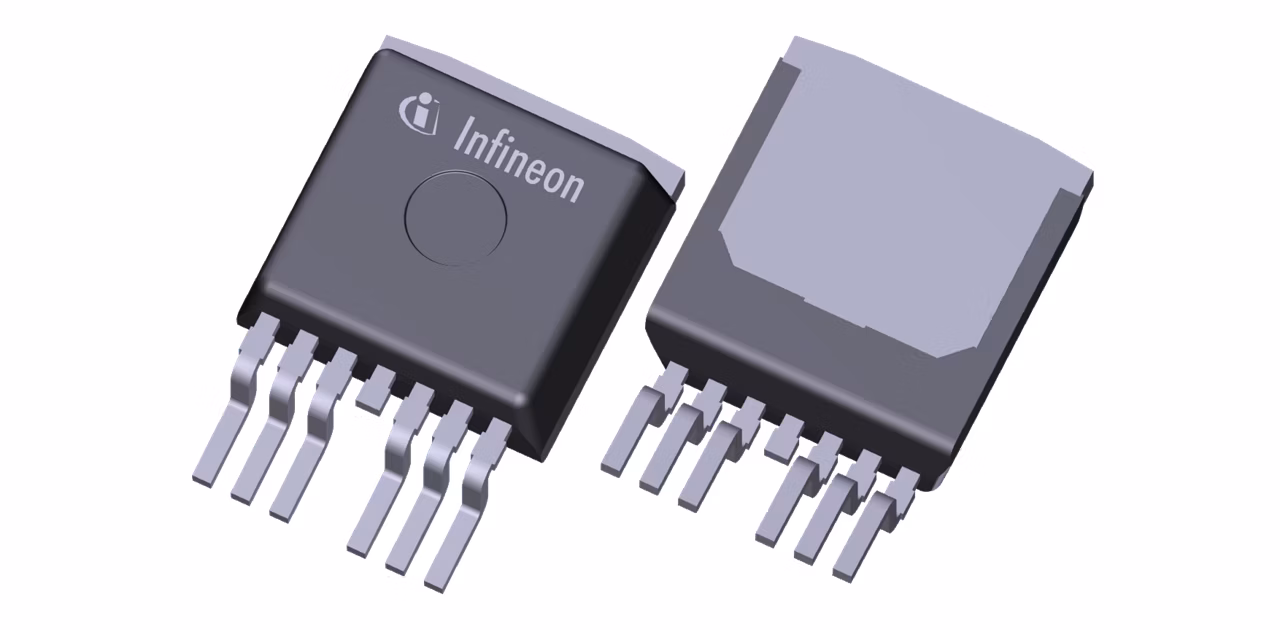

IPB024N10N5
  • IPB024N10N5

IPB024N10N5

Active and preferred

Infineon Technologies IPB024N10N5 Product Info

16 April 2026 0

Parameters

Budgetary Price €/1k

1.55

ID (@25°C) max

180 A

IDpuls max

720 A

Mounting

SMD

Operating Temperature range

-55 °C to 175 °C

Package

D2PAK 7pin (TO-263 7pin)

Pin Count

7 Pins

Polarity

N

Ptot max

250 W

Qgd

23 nC

QG (typ @10V)

111 nC

RDS (on) (@10V) max

2.4 mΩ

RthJA max

62 K/W

RthJC max

0.6 K/W

Rth

0.4 K/W

VDS max

100 V

VGS(th) range

2.2 V to 3.8 V

VGS(th)

3 V

Apps

Automotive, Light electric vehicle solutions, DIN rail power supply solutions

Features

  • Optimized for synchronous rectification
  • Ideal for high switching frequency
  • 44% reduction in output capacitance
  • 43% RDS(on) reduction from previous gen

Description

  • Highest system efficiency
  • Reduced switching and conduction losses
  • Less paralleling required
  • Increased power density
  • Low voltage overshoot
