T3800N16TOF VT
  • T3800N16TOF VT

T3800N16TOF VT

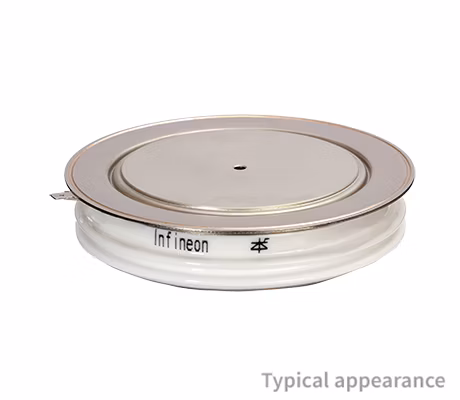

Phase Control Thyristor 1600 V, 3800 A with 111 mm diameter and a height of 26 mm assembled in high reliable, robust and hermetic sealed ceramic housings. The T3800N prime disc is specially optimized for UPS-Bypass applications and offers the highest current capability in the market.

Infineon Technologies T3800N16TOF VT Product Info

16 April 2026 0

Parameters

Clamping force [kn] range

42 to 95

Configuration

Electrical Triggered Phase Control Thyristor

Housing

Disc dia 111mm height 26mm / Ceramic

ITAVM/TC [A/°C] (@180° el sin)

3800/85

ITAVM

3800 (180° el sin)

ITSM [A] (@10ms, Tvj max)

53000

ITSM

53000 A

RthJC [K/kW] (@180° el sin) max

8.5

tq [µs]

250

Tvj [°C] max

135

VDRM / VRRM [V]

1600

VDRM/ VRRM (V)

1600 V

VT/IT [V/kA]

1.28/6.0 (@Tvj max)

∫I2dt [A²s · 103] (@10ms, Tvj max)

14045

Apps

Traction, Wind power, Motor control, Uninterruptible power supplies (UPS)

Features

  • Full blocking capability 50/60 Hz
  • High DC blocking stability
  • High surge current capability
  • Maximum junction temperature 135° C
