BGSX44MU18
  • BGSX44MU18

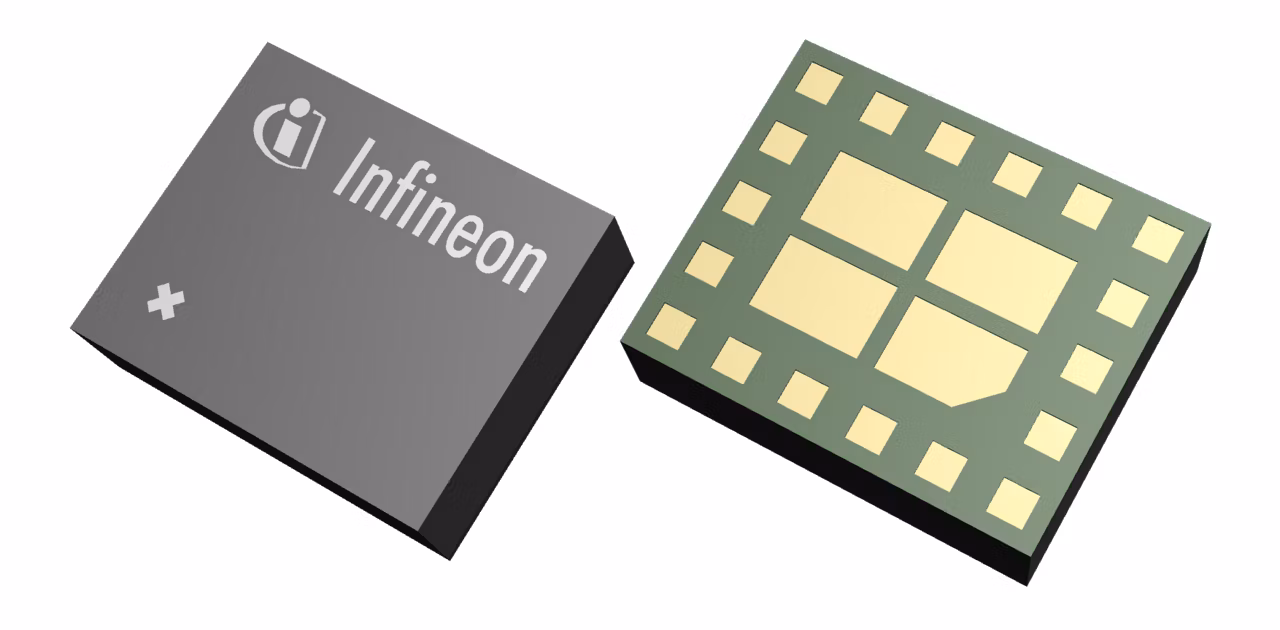

BGSX44MU18

Active and preferred

The BGSX44MU18 RF CMOS switch is specifically designed for LTE and 5G FR1 four-antenna applications. This 4P4T cross-switch offers low insertion loss and low harmonic generation.The switch is controlled via a MIPI RFFE control interface. The on-chip controller allows power-supply voltages from 1.65 to1.95 V. The switch features direct-connect-to-battery functionality and DC-free RF ports.Unlike GaAs technology, external DC blocking capacitors at the RF ports are only required if DC voltage is applied externally. The device has a very small size of only 2.0 mm x 2.4 mm and a thickness of 0.63 mm.

Infineon Technologies BGSX44MU18 Product Info

16 April 2026 0

Parameters

Control Interface

MIPI 2.1

Frequency Range range

0.4 GHz to 7.125 GHz

Frequency Range

0.4 – 7.125 GHz

Isolation

43 dB

Size

2.0 x 2.4 mm²

Switch Type

4P4T

Apps

Semiconductor solutions for home entertainment applications, General purpose motor drive

Features

  • High linearity up to 37 dBm peak power
  • Fast switching time (max 2 µs) for 5G SRS applications
  • Low insertion loss and high port to port isolation up to 7.125 GHz
  • Low power consumption allows to use MIPI RFFE supply by combining VDD and VIO pins on a voltage range of only 1.65 – 1.95 V
  • MIPI RFFE 2.1 control interface
  • Software and hardware programmable USID
  • Ultra low profile lead-less plastic package (MSL-3, 260 C per IPC/JEDEC J-STD-20)
  • RoHS and WEEE compliant package
