T2200N16H100
  • T2200N16H100

T2200N16H100

Active and preferred

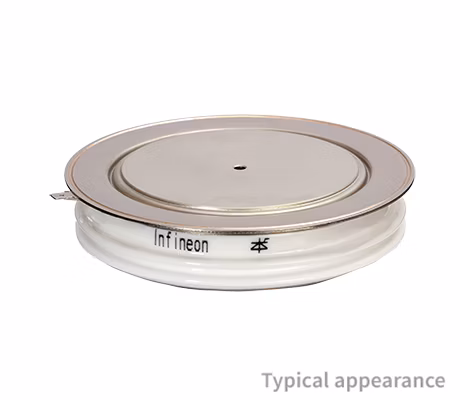

Phase Control Thyristor 1600 V, 2200 A with 100 mm diameter and a height of 26 mm assembled in high reliable, robust and hermetic sealed ceramic housings. The T2200N thyristor disc is specially optimized for UPS-Bypass applications in terms of production effort and clamping force allowing same on state losses with smaller clamping systems. Our pressure contact chips in general provide best-in-class blocking stability and offers the highest current capability.

Infineon Technologies T2200N16H100 Product Info

16 April 2026 0

Parameters

Clamping force [kn] range

30 to 45

Housing

Disc dia 100mm height 26mm / Ceramic

ITAVM/TC [A/°C] (@180° el sin)

2170/85

ITAVM

2170 (180 ° el sin)

ITSM [A] (@10ms, Tvj max)

44000

RthJC [K/kW] (@180° el sin) max

12.6

Tvj [°C] max

125

VDRM / VRRM [V]

1600

VDRM/ VRRM (V)

1600 V

∫I2dt [A²s · 103] (@10ms, Tvj max)

9680

Apps

Traction, Wind power, Motor control, Uninterruptible power supplies (UPS)

Features

  • Full blocking 50/60Hz over a wide range temperature range
  • High DC blocking stability
  • High surge current capability
  • Industial standard package

Description

  • Easy system power scaling by special designs for series- and parallel connection
  • Fuseless design possible due to high overload capability
  • Minimized maintenance and reduced downtime due to high reliability
