T1503N80TOH PR
  • T1503N80TOH PR

T1503N80TOH PR

Active and preferred

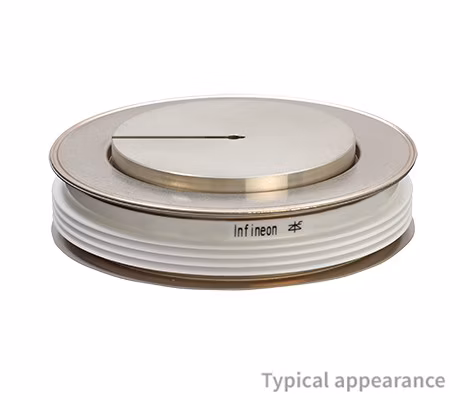

Light Triggered Thyristor discs 8000 V, 1770 A with 150 mm diameter and height of 40 mm in high reliable, robust and hermetic sealed ceramic housing.

Infineon Technologies T1503N80TOH PR Product Info

16 April 2026 0

Parameters

Clamping force [kn] range

63 to 91

Configuration

Light Triggered Phase Control Thyristor

Housing

Disc dia 150mm height 40mm / Ceramic

ITAVM/TC [A/°C] (@180° el sin)

1770/85

ITAVM

1770 (180 ° el sin)

ITSM [A] (@10ms, Tvj max)

55000

ITSM

55000 A

rT [mΩ] (@Tvj max) max

0.44

RthJC [K/kW] (@180° el sin) max

6.3

tq [µs]

550

Tvj [°C] max

120

VDRM / VRRM [V]

8000

VDRM/ VRRM (V)

8000 V

VT/IT [V/kA] (@Tvj max)

3.00/4.0

VT0 [V] (@Tvj max) max

1.24

∫I2dt [A²s · 103] (@10ms, Tvj max)

15125

Apps

Medium voltage (MV) drive, Power transmission and distribution

Features

  • Full blocking capability 50/60 Hz
  • High DC blocking stability
  • High case non-rupture current
  • High turn-on di/dt capability
  • High surge current capability
  • High di/dt capability
  • High dv/dt capability
