IRS2113S
  • IRS2113S

IRS2113S

Active and preferred

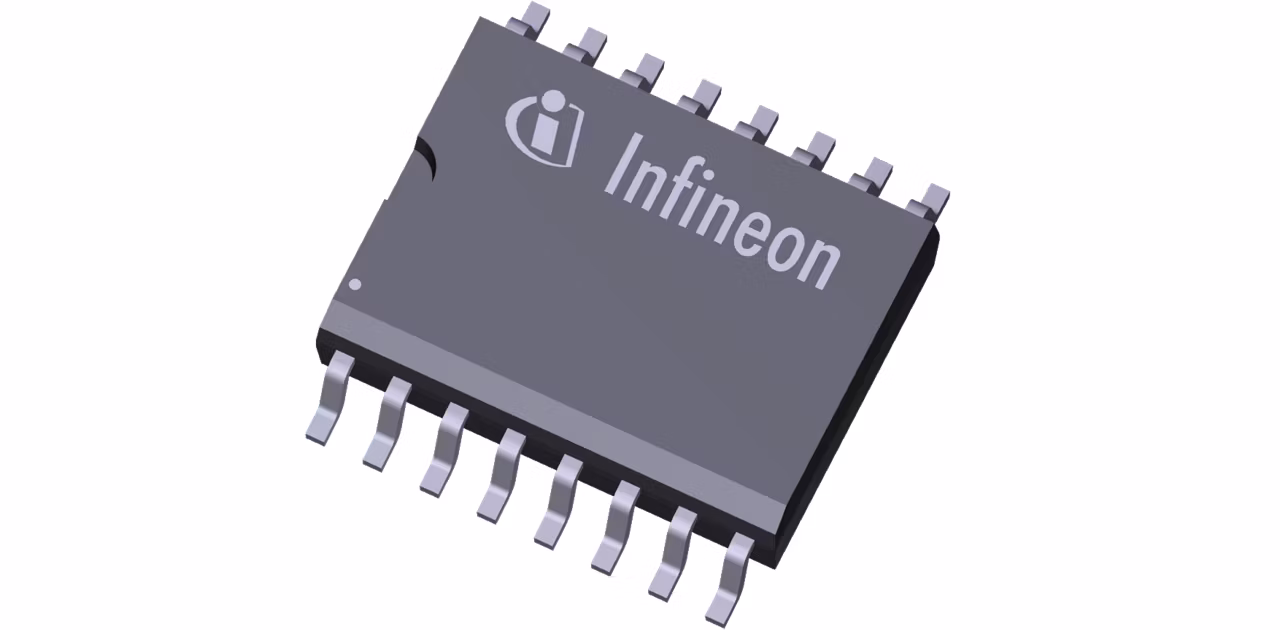

600 V High and Low Side Driver IC with typical 2.5 A source and 2.5 A sink currents in 16 Lead SOICWB package for IGBTs and MOSFETs. Also available in 14 Lead PDIP and 14 Lead MLPQ 4x4.

Infineon Technologies IRS2113S Product Info

16 April 2026 0

Parameters

Channels

2

Configuration

High-side and low-side

Input Vcc range

10 V to 20 V

Isolation Type

Functional levelshift JI (Junction Isolated)

Output Current (Source)

2.5 A

Output Current (Sink)

2.5 A

Qualification

Industrial

Turn Off Propagation Delay

120 ns

Turn On Propagation Delay

130 ns

VBS UVLO (Off)

8.2 V

VBS UVLO (On)

8.6 V

VCC UVLO (Off)

8.2 V

VCC UVLO (On)

8.5 V

Voltage Class

600 V

Apps

Power tools, Home appliances, Photovoltaic, Robotics, Residential air conditioning, Motor control, Power conversion, Uninterruptible power supplies (UPS)

Features

  • Floating driver for bootstrap op.
  • Fully operational to +600 V
  • Operational to +500 V (IRS2110)
  • Tolerant to neg. transient volt.
  • dV/dt immune
  • Gate drive supply: 10 V to 20 V
  • Undervolt. lockout for both channel
  • 3.3 V logic compatible
  • Sep. logic sup. from 3.3 V to 20 V
  • Logic & power ground +/- 5 V offset
  • CMOS Schmitt-triggered inputs
  • C-by-c edge-trigg. shutdown logic
