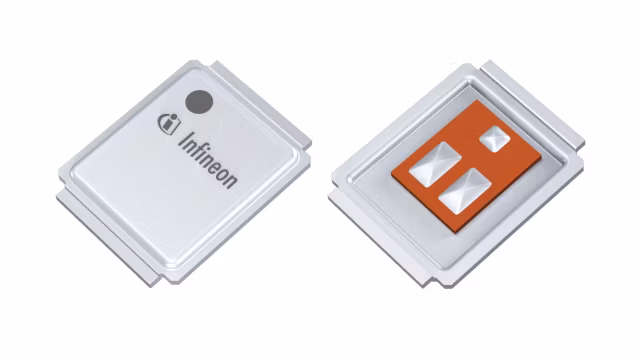

IRF6727M
  • IRF6727M

IRF6727M

The StrongIRFET™ power MOSFET family is optimized for low RDS(on) and high current capability. The devices are ideal for low frequency applications requiring performance and ruggedness. The comprehensive portfolio addresses a broad range of applications including DC motors, battery management systems, inverters, and DC-DC converters.

Infineon Technologies IRF6727M Product Info

16 April 2026 1

Parameters

Budgetary Price €/1k

0.7

ID (@25°C) max

180 A

Micro-stencil

IRF66MX-25

Moisture Sensitivity Level

1

Mounting

SMD

Operating Temperature range

-40 °C to 150 °C

Package

DirectFET (M)

Polarity

N

Ptot max

89 W

Ptot (@ TA=25°C) max

2.8 W

Qgd

16 nC

QG (typ @4.5V)

49 nC

RDS (on) (@10V) max

1.7 mΩ

RDS (on) (@4.5V) max

2.4 mΩ

RthJC max

1.4 K/W

Special Features

Schottky (includes Schottky like and FETky)

Tj max

150 °C

VDS max

30 V

VGS(th) range

1.35 V to 2.35 V

VGS(th)

1.8 V

VGS max

20 V

Features

  • Optimized for broadest availability
  • Product qualification according to JEDEC
  • High-current rating
  • Dual-side cooling capability
  • Low package height of 0.7mm
  • Low parasitic (1-2 nH) pkg inductance
  • 100% lead-free (No RoHS exemption)

Description

  • Wide distribution availability
  • Industry standard qualification level
  • High current carrying capability
  • Optimum thermal performance
  • Compact form factor
  • High efficiency
  • Environmentally friendly
