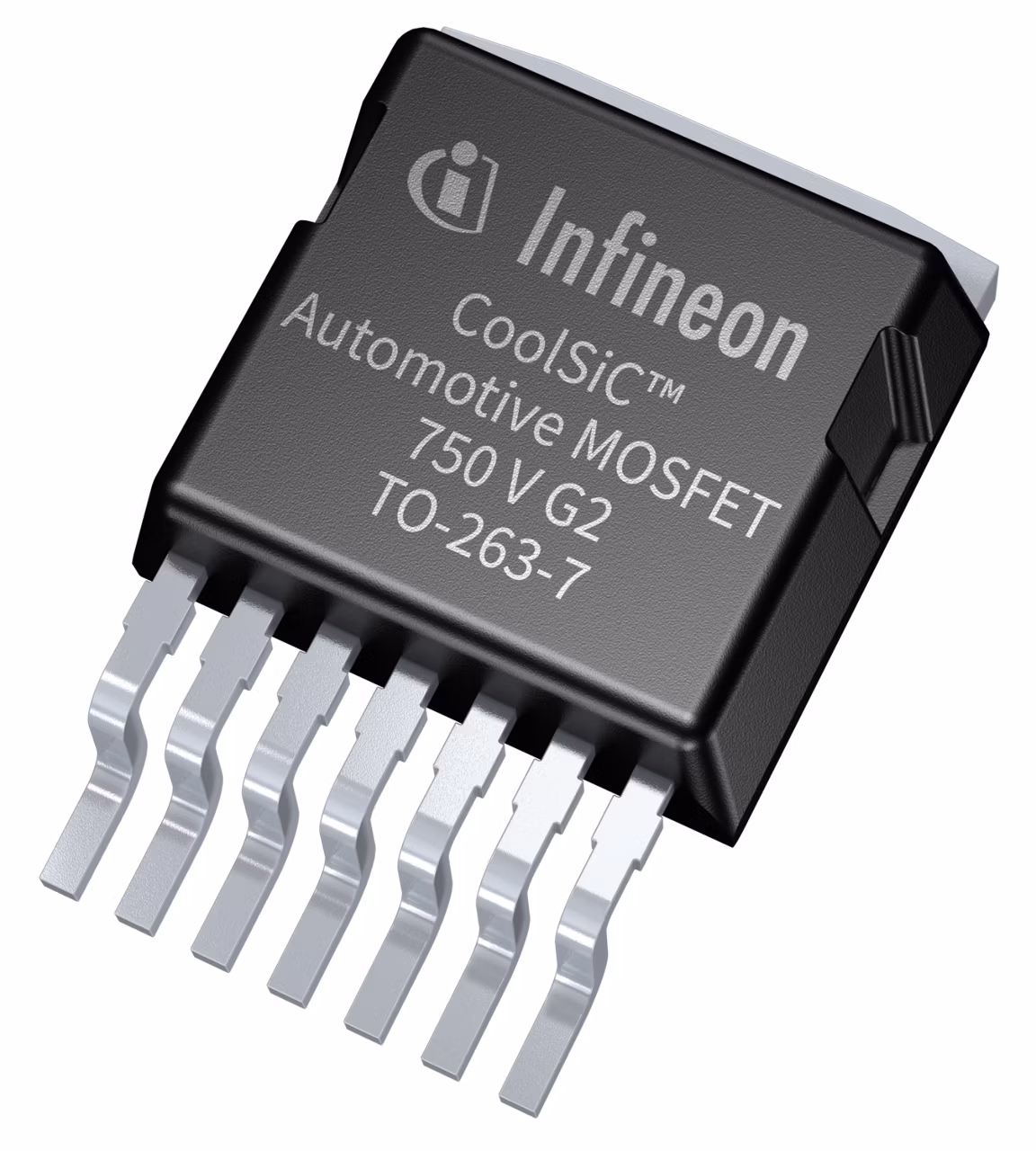

AIMBG75R060M2H

Active and preferred

The CoolSiC™ MOSFET 750 V leverages more than 20 years of SiC experience in Infineon. It offers an edge in performance, reliability and robustness, with gate driving flexibility, enabling the simplified and cost effective system design for top efficiency and power density. The innovative top-side-cooling package further enhance the CoolSiC™ 750 V strengths offering more density, optimized power loop design and less system and assembly cost.

Infineon Technologies AIMBG75R060M2H Product Info

16 April 2026 0

Parameters

ID (@25°C) max	29 A
Mounting	SMT
Operating Temperature range	-55 °C to 175 °C
Package	D2PAK 7-pin
Polarity	N
Qualification	Automotive
RDS (on) (@ Tj = 25°C) max	78 mΩ
RDS (on) (@ Tj = 25°C)	60 mΩ
RthJC max	1.29 K/W
Technology	CoolSiC™ G2
VDS max	750 V

Apps

Automotive auxiliary systems, Automotive battery protection & disconnection, DC-DC converter high-voltage, On-board charging (OBC), Solid-state circuit breaker (SSCB)

Features

Highly robust 750 V technology
Best-in-class R_DS(on) x Q_fr
Excellent R_on x Q_oss and R_on x Q_G
Low C_rss/C_iss together and high V_gsth
100% avalanche tested
Infineon die attach technology
Cutting-edge top-side-cooled package

Description

Superior efficiency in hard switching
Enables higher switching frequency
Higher reliability
Withstand bus voltages beyond 500 V
Robustness against parasitic turn
Unipolar driving
Best-in-class thermal dissipation
