IR3888AMTRPBF
  • IR3888AMTRPBF

IR3888AMTRPBF

Active

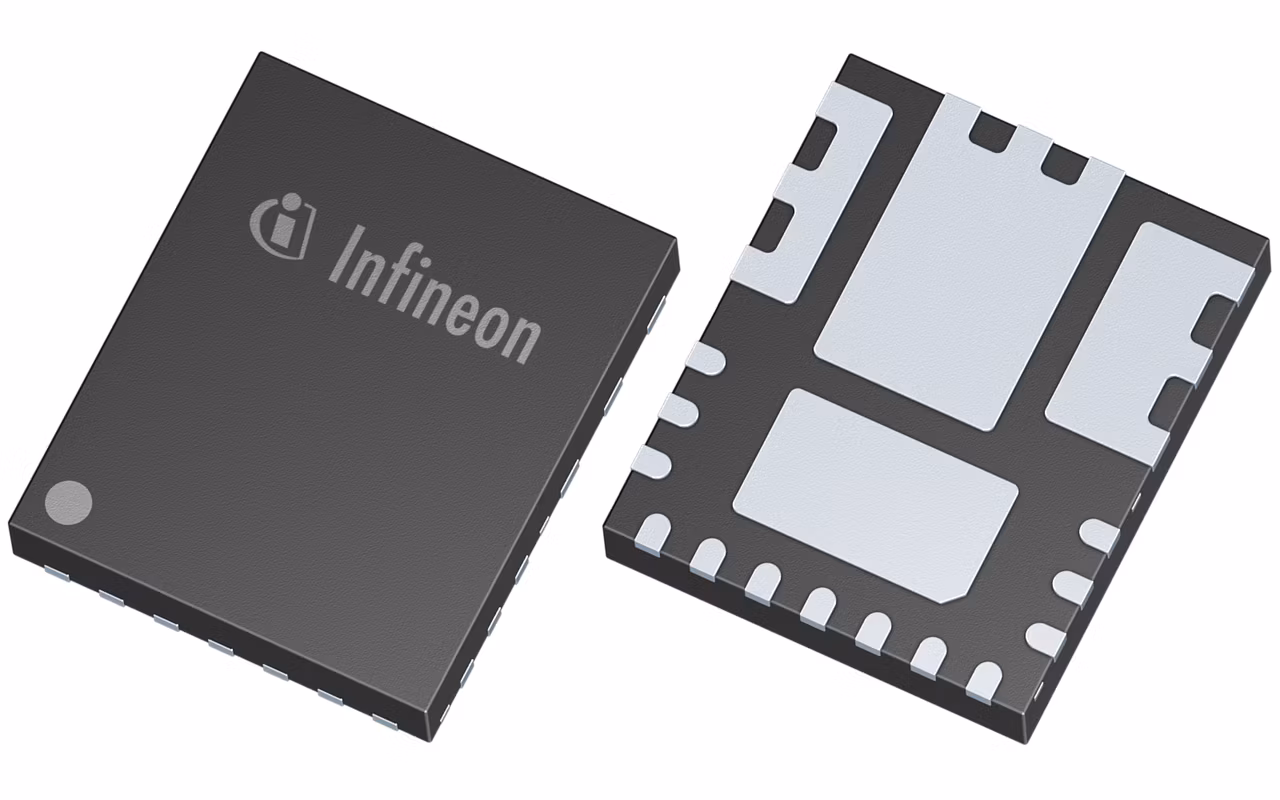

The IR3888A OptiMOS™ IPOL 20 A is an easy-to-use, fully integrated DC-DC buck regulator with patented fast Constant-On-Time (COT) control scheme. It simplifies the design effort, while enable an enhanced transient response and improved Vout regulation. The onboard PWM controller and OptiMOS™ 5 MOSFETs with integrated bootstrap diode make the IR3888A a small footprint, high efficiency solution for various point-of-load applications requiring.

Infineon Technologies IR3888AMTRPBF Product Info

16 April 2026 0

Parameters

Accuracy range

-0.5 % to 0.5 %

Family

OptiMOS™ IPOL

Industrial 24V Input

No

Input Voltage range

4.3 V to 17 V

Internal Bias LDO

Yes

Iout max

20 A

Moisture Sensitivity Level

2

Number of Outputs

1

Operating Temperature range

-40 °C to 125 °C

Output Voltage range

0.6 V to 6 V

Product Category

Analog

Qualification

Industrial

Switching Frequency range

800 kHz to 800 kHz

Technology

Fast Constant On-Time

Topology

Buck

Type

Single-phase

Apps

Medium voltage IBC (48 V), Edge computing

Features

  • Single 4.3-17 V application
  • Precision Reference (0.6V +/
  • 0.5%)
  • Enhanced fast COT engine
  • Forced continuous conduction mode
  • 800 kHz switching frequency
  • soft-start with enhanced pre-bias
  • Thermally compensated internal OCP
  • Enable input with voltage monitoring
  • Thermal shut down
  • Operating Tj: -40 °C to 125 °C
  • Small size: 6 mm x 5 mm PQFN
  • RoHS2 compliant with exemption 7a

Description

  • Easy to use fast COT PWM Engine
  • High efficiency
  • Accurate output voltage regulation
  • Superior transient response
  • Reduced BOM
